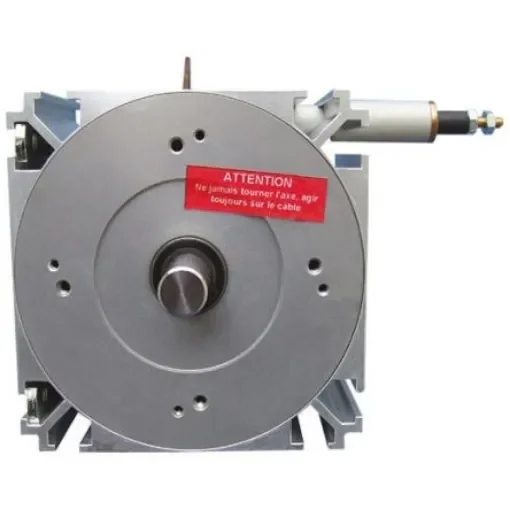

Baumer Draw Wire Encoder - Z 136.203

Connection Type = M23 12-Pin

Cable mechanisms for Z136 series encoders. Cable mechanisms consisting of a very flexible calibrated wire on a reel drum. For measuring linear movement when used with an incremental or absolute encoder. Measurement length: 3 or 5 metres. 2 models available:. 3-metre model; Z 136.203.. For Ø 58 mm encoders, hollow shaft with Ø12 mm bore and fitted with an anti-rotation spring. 5-metre model; Z 136.305.. For Ø 58 mm encoders, with Ø 6 mm protruding shaft and synchro flange. The flexible coupling is supplied with the cable mechanism.
