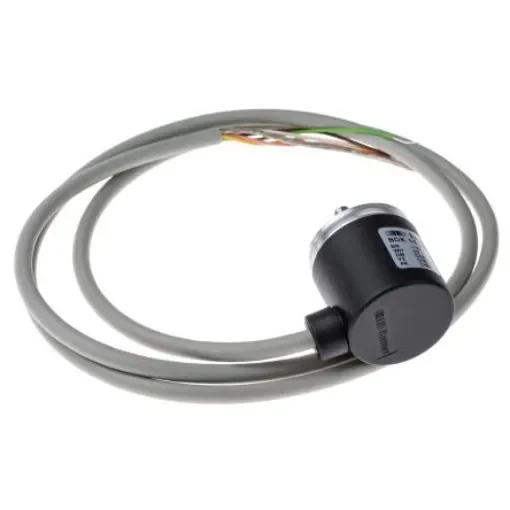

Baumer BDK Series Optical Incremental Encoder, 360 ppr, HTL/Push Pull Signal, Solid Type, 5mm Shaft - BDK 16.24K360-L5-5
High-performance optical incremental encoder with 360 PPR and solid 5mm shaft.
Manufacturer part number: BDK 16.24K360-L5-5
Encoder Technology = Optical
Pulses Per Revolution = 360
Maximum Revolutions = 6000rpm
Output Signal Type = HTL/Push Pull
Shaft Type = Solid
Shaft Diameter = 5mm
IP Rating = IP64
Overall Width = 30mm
Minimum Operating Temperature = -20°C
Mounting Type = Synchro Flange°C
Connection Type = Cable output 1 m
BDK series mini encoders. Range of economic miniature encoders with radial cable connector, 1 m. Additional versions output circuit, sine, TTL and push-pull. Plastic housing with aluminium flange. Centring shoulder. Low-profile mount. Cable output.
