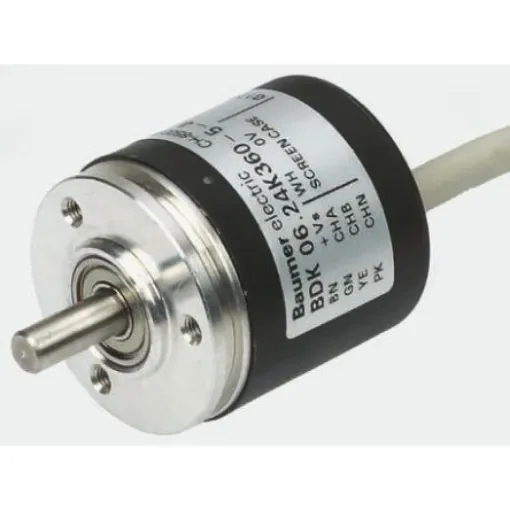

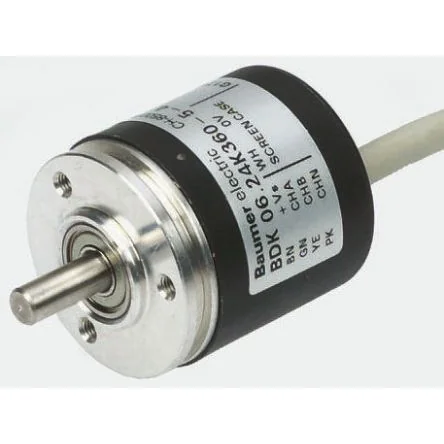

Baumer BDK Series Optical Incremental Encoder, 100 ppr, HTL/Push Pull Signal, Solid Type, 5mm Shaft - BDK 16.24K100-5-4
High-performance optical incremental encoder with 100 PPR and solid 5mm shaft.
Manufacturer part number: BDK 16.24K100-5-4
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Encoder Technology = Optical
Series = BDK
Maximum Revolutions = 12000rpm
Output Signal Type = HTL/Push Pull
Shaft Type = Solid
Shaft Diameter = 5mm
IP Rating = IP42
Overall Width = 30mm
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +85°C
Switching Frequency = =100 kHz
BDK Miniature Shaft. Collar mounting Push-pull or complementary versions available
