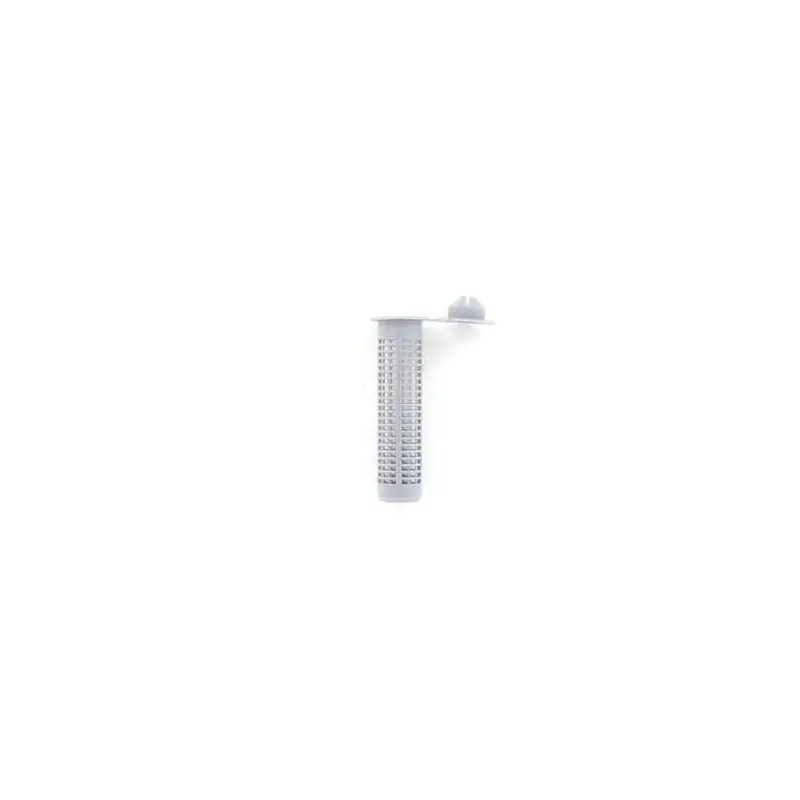

Pack of 10 BATIFIX centring cone sieves, diameter 12 x 50mm
Sieve for chemical fixing by resin injection for hollow materials
Centring cone allows optimal guidance of the threaded rod
Regular perforation of the sieve to allow maximum diffusion of the resin
USAGE ADVICE FOR CHEMICAL SEALING INSTALLATION

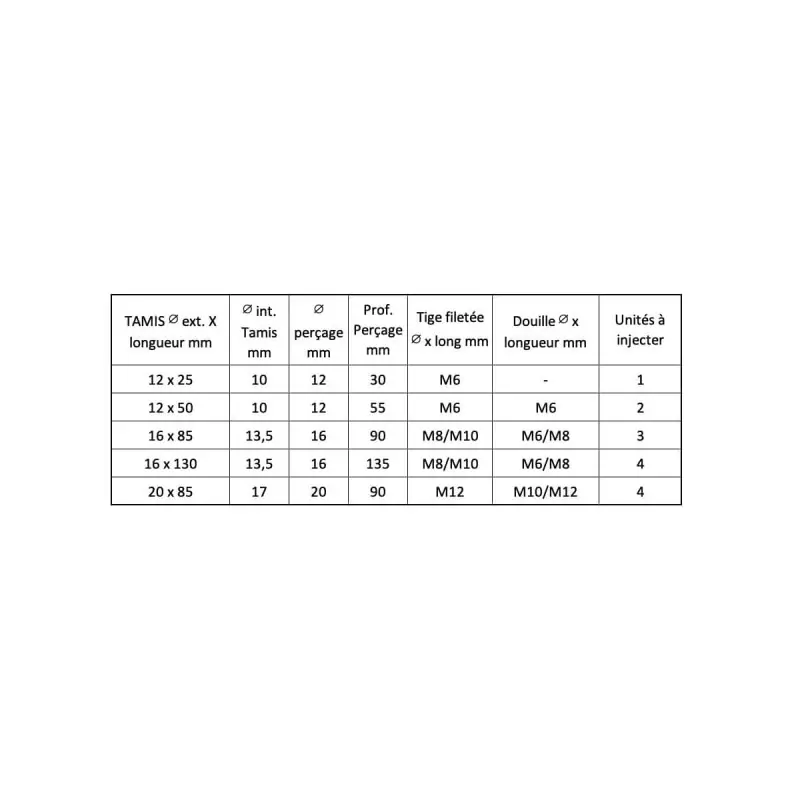

For hollow materials, it is the diameter of the sieve that determines the diameter of the drilling
Drill the hole to the desired dimensions
Carefully dust the holes by blowing air into them
Place the resin cartridge and cut the tip
For hollow materials only: Insert the sieve ensuring that the centring ring is open, then inject the resin into the sieve and close the centring ring, then insert the threaded rod during the handling time, turning until it reaches the bottom of the sieve
As a guideline, at a temperature of 5°C the drying time is 50 min, at 20°C wait 20 min, at 30°C wait 15 min, and at 35°C wait 10 min
Diameter: 12 X 50 mm
Fixing for hollow materials such as concrete blocks, hollow bricks, and various hollow materials
Centring cone allows optimal guidance of the threaded rod
Suitable for M6 threaded rods
Regular perforation of the sieve for better diffusion of the resin
The chemical sealing solution is very robust and allows for the fixing of heavy objects
Weight of the sieve: 15 g

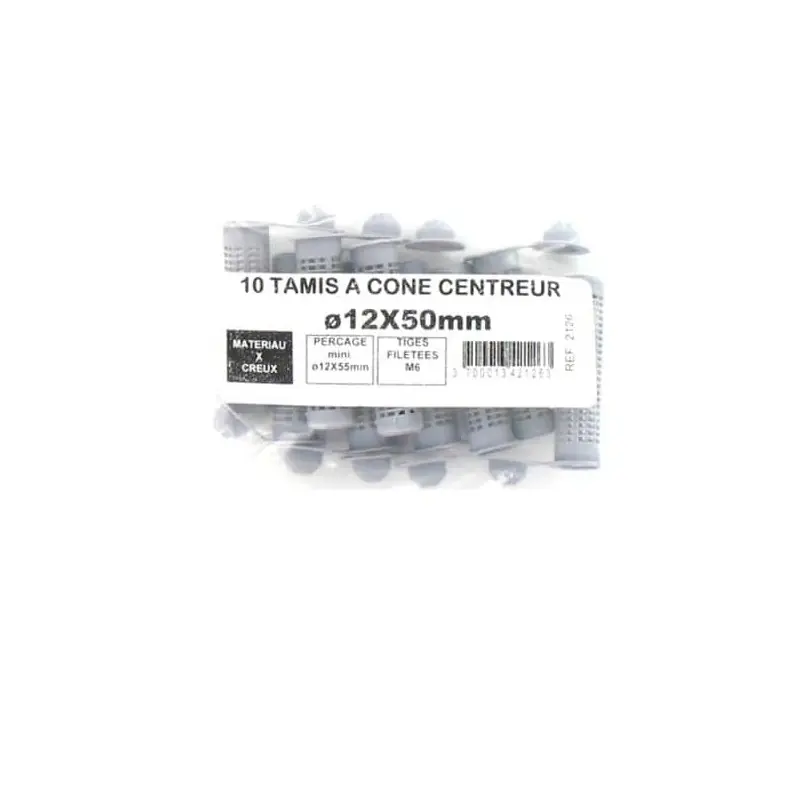

10 sieves in individual packaging
