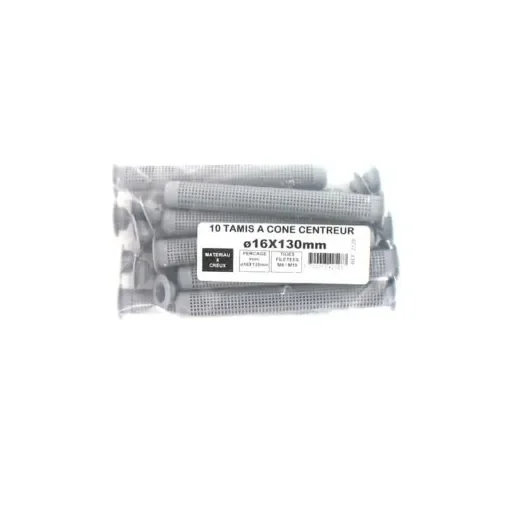

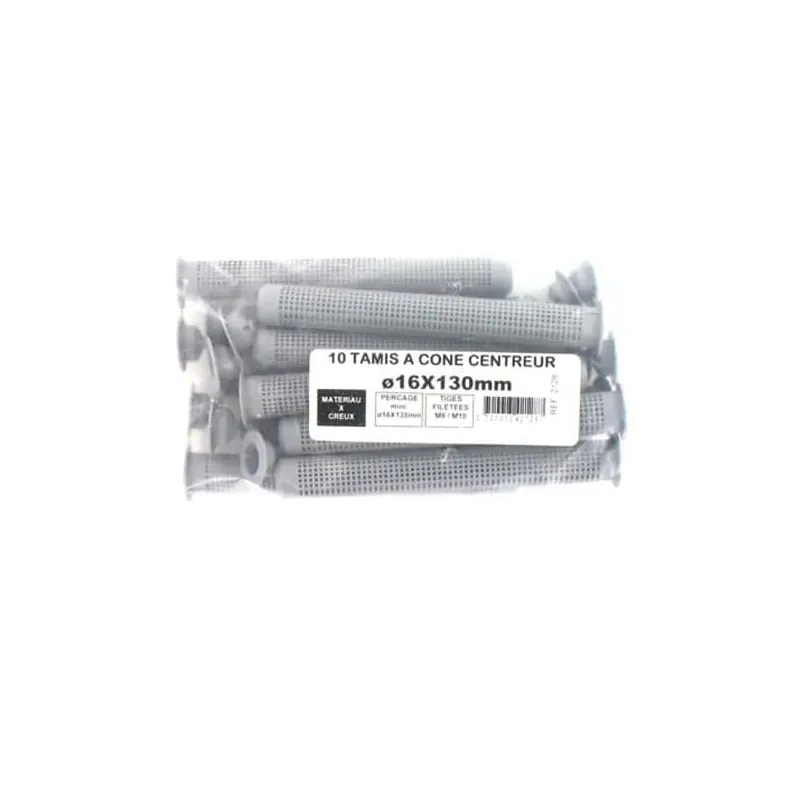

Thispack of 10 BATIFIX centring cone sieves is designed for chemical fixing by resin injection for hollow materials. The centring cone allows for optimal guidance of the threaded rod, and a regular perforation of the sieve ensures maximum diffusion of the resin.
- Diameter: 16 x 130mm
- Fixing for hollow materials such as concrete blocks, hollow bricks, and various hollow materials
- Centring cone allows for optimal guidance of the threaded rod
- Suitable for M8/M10 threaded rods
- Regular perforation of the sieve for better resin diffusion
- The chemical sealing solution is very robust and allows for the fixing of heavy objects
- Weight: 5 g
- Ref. FIXTAM-16X130
Usage tips for chemical sealing installation
- For hollow materials, it is the diameter of the sieve that determines the diameter of the drilling.
- Drill the hole to the desired dimensions.
- Carefully dust the holes by blowing air into them.
- Set up the resin cartridge and cut the tip.
- For hollow materials only: Insert the sieve ensuring that the centring ring is open, then inject the resin into the sieve and close the centring ring. Next, insert the threaded rod during the handling time, turning until it reaches the bottom of the sieve.
Drying time indicative
- At a temperature of 5°C: 50 min
- At a temperature of 20°C: 20 min
- At a temperature of 30°C: 15 min
- At a temperature of 35°C: 10 min
10 x sieves in individual packaging
Delivered in their original packaging
