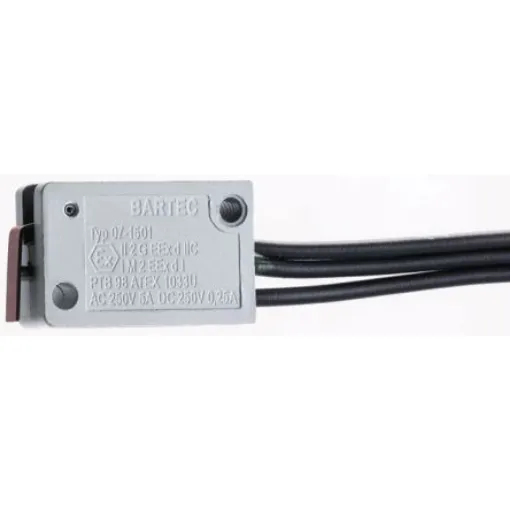

Bartec Plunger Limit Switch, NO/NC, IP54, Duroplast Housing, 250V ac Max, 5A Max - 07-1501-6530/01

Actuator Type = Plunger
Normal State Configuration = NO/NC
IP Rating = IP54
Maximum Current = 5A
Housing Material = Duroplast
Maximum AC Voltage = 250V
Maximum DC Voltage = 250V
Length = 29.8mm
Depth = 10mm
Mechanical Life = 10000000Cycles

PTB 98 ATEX 1033 U (For Insert Switch), PTB 01 ATEX 1005 X (For Limit Switch). II 2G EExd IIC I M2 EEx d I (For Insert Switch), II 2G EEx d IIC T6 (For Limit Switch). Bartec Miniature Limit Switch / Insert Switch. EExd miniature switches for use in areas where a flameproof switching element is required. Two types of switches are available to suit different equipment construction requirements, Limit Switches and Insert Switches. The Limit Switch type requires mechanical protection for the switch body and cable, no further testing is required. The Insert Switch is to be installed in a enclosure that provides mechanical protection and which fulfils the requirements of EN 50014 section 1.2. . IP54 protection rating Silver changeover contacts 250Vac 5A (resistive), 250Vdc 0.25A (resistive), 30Vdc 5A (resistive) 10 ;sup>7 ;/sup> operations Body width 18mm, height 28mm, depth 10mm Long lever actuator length 65mm, Short lever 14mm Limit Switch cable length 1m, Insert Switch leads length 500mm Potted cable / leads to switch base
