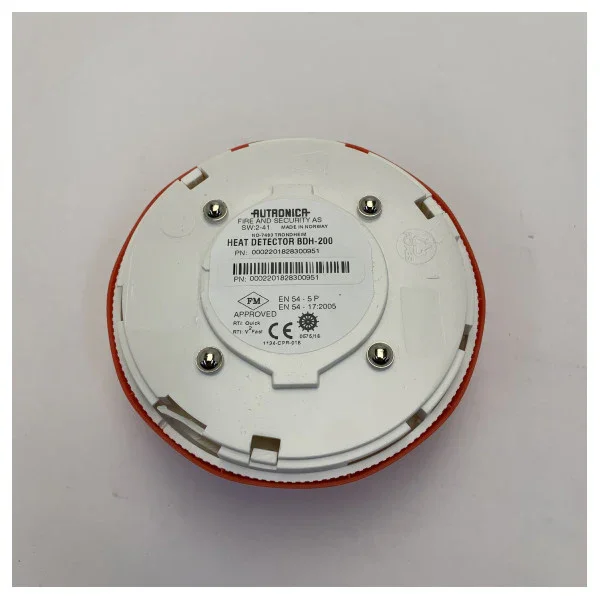

Autronica Heat Detector BD-200 IP44D - 116-BDH-200
Optimize fire safety in your premises with the Autronica Heat Detector BD-200. This reliable detection head is specifically designed for environments where smoke detection is not desirable or effective, for example due to the presence of steam, dust or vapours. The detector responds quickly to an abnormal temperature rise, which is essential for the early detection of fire.
The BD-200 is easy to install and maintain. This model is equipped with Autronica's advanced interactive addressable protocol, which ensures accurate and fast communication with the fire alarm system.
Key Features
- Reliable Heat Detection: Responds to both a fixed temperature threshold (static) and a rapid temperature rise (differential).
- High-Quality Protection: The detection head has an IP44D rating, which means it is protected against the ingress of solid objects larger than 1 millimetre and against splashing water.
- Interactive Addressable: Utilizes the advanced Autronica protocol for accurate location determination and interference-free communication.
- User-Friendly: Simple installation and maintenance due to the smart design.
- Meets the Standard: Developed according to the strictest European safety standards.
Product Specifications
The Autronica Heat Detector BD-200, with product number 116-BDH-200, has the following built-in specifications:
The detector operates on a power supply voltage of 10 VDC to 27 VDC. The maximum current consumption in standby is less than 0.3 mA and in alarm mode less than 3 mA. The effective detection area is approximately 80 square metres at a mounting height of less than 6 metres. The detector functions optimally within a operating temperature of -20 degrees Celsius to +70 degrees Celsius. The dimensions of the detection head (diameter x height) are 100 mm x 50 mm and the weight is approximately 70 grams. This product is designed to work with Autronica fire alarm systems and is an essential component for a professional fire protection solution.
