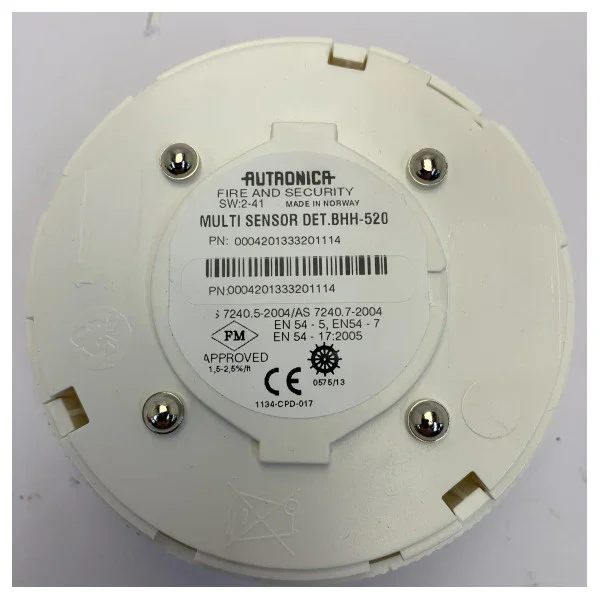

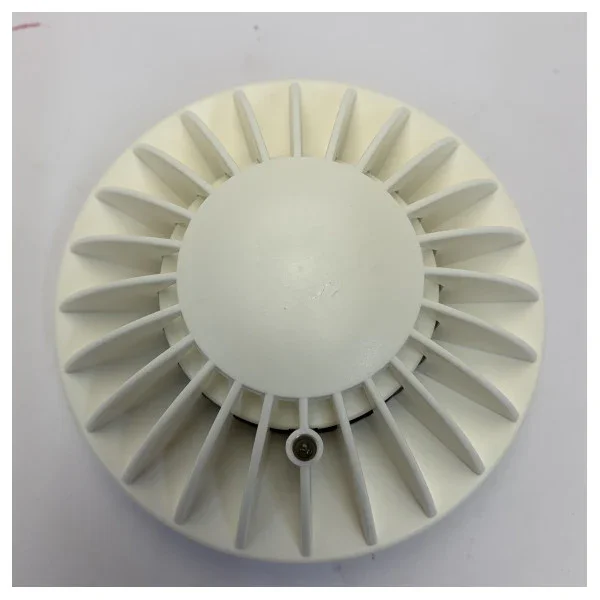

Autronica BHH-520 Multi-Sensor Smoke Detector and Heat Detector
The Autronica BHH-520 is an advanced analogue addressable multi-sensor that offers maximum safety by combining smoke detection with heat monitoring. This detector is specifically designed for use with the AutroSafe and Autroprime fire alarm systems. By combining optical and thermal sensors, this device responds faster to different types of fires, while minimising the chance of false alarms.
Why choose the Autronica BHH-520?
This multi-sensor detector uses Autronica's unique SelfVerify technology. This means that the detector automatically performs a self-test every day to check the sensitivity and operation of the components. This ensures that you have a system that is always operational and meets the strictest safety requirements without manual intervention.
The BHH-520 is particularly suitable for environments where smoke detection alone is insufficient. Thanks to the built-in heat sensor, the device detects rapid temperature increases, which is essential in fire sources that produce little smoke.
Key features and benefits
- Multi-sensor technology: Combined optical smoke detection and thermal heat monitoring for reliable detection.
- SelfVerify system: Automatic daily check of the entire detector for optimal reliability.
- Fewer false alarms: The intelligent processing of signals filters out environmental influences that would normally cause an unwanted alarm.
- Compatibility: Seamless integration with AutroSafe and Autroprime fire alarm control panels.
- Durable design: Developed for long-term use in various professional environments.
Technical specifications of the Autronica BHH-520
The technical structure of this model is focused on precision and speed. Below you will find the key data that has been processed in the system:
- Article number: 116-BHH-520
- Type: Analogue addressable multi-sensor (Smoke and Heat)
- Housing material: PC/ABS plastic
- Colour: White
- Protection class: IP44D
- Operating voltage: 10 to 27 Volt DC
- Current consumption at rest: Less than 0.3 mA
- Operating temperature: -20 to +70 degrees Celsius
- Humidity: Maximum 95 percent relative humidity (non-condensing)
- Weight: 105 grams
- Certification: Complies with EN 54-5, EN 54-7 and the CEA 4021 standards
The Autronica BHH-520 provides a total solution for fire safety in offices, hotels, and industrial locations where reliability is the highest priority.
