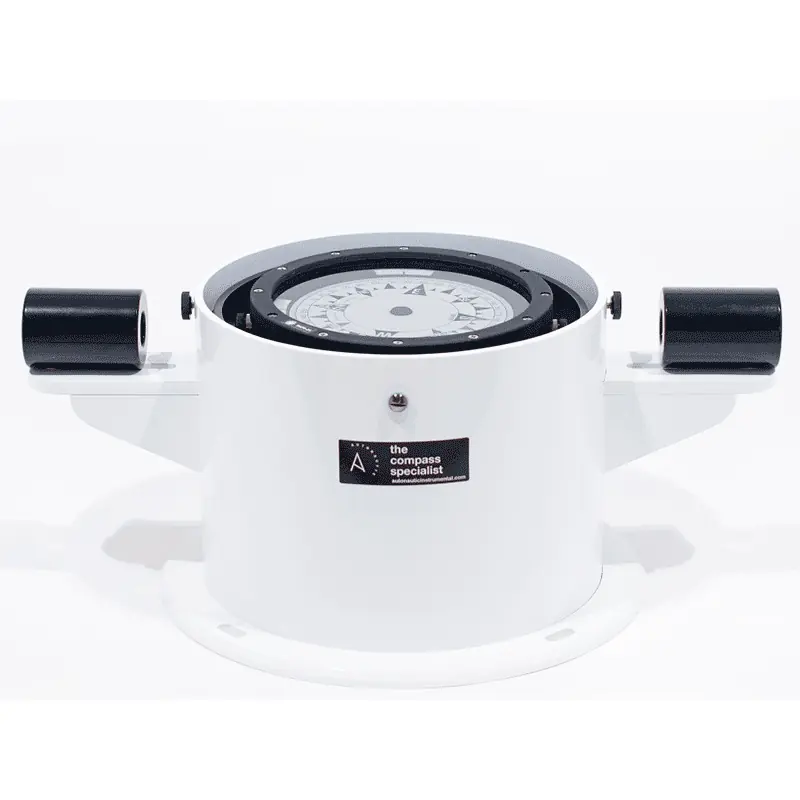

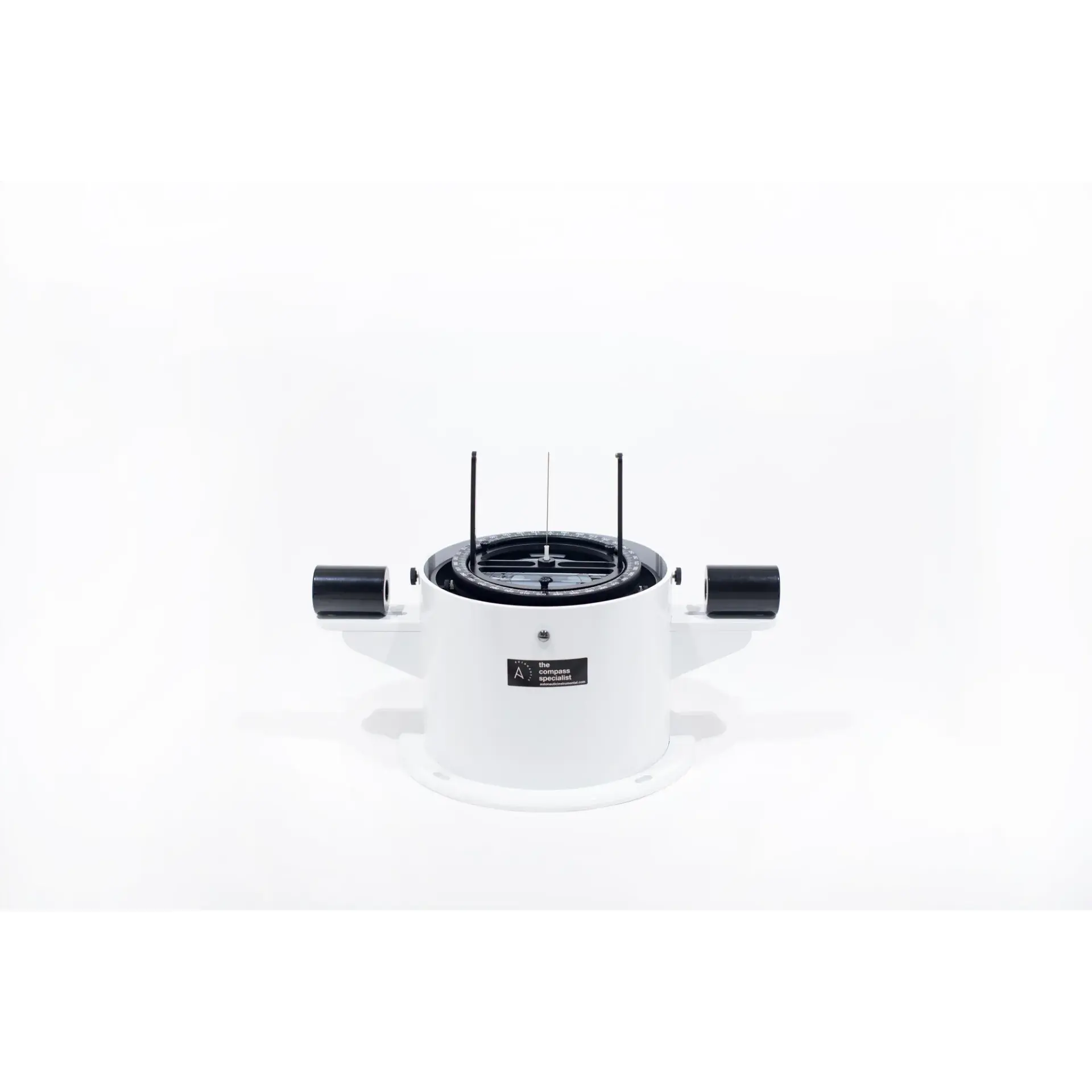

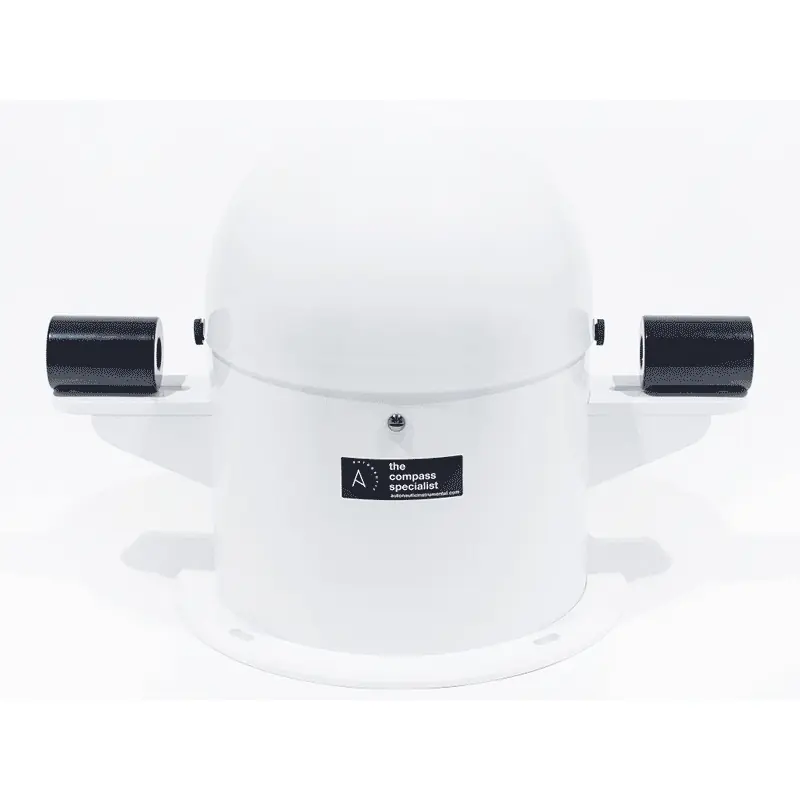

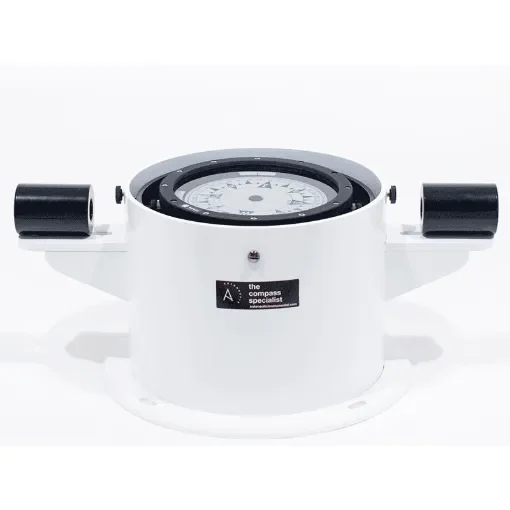

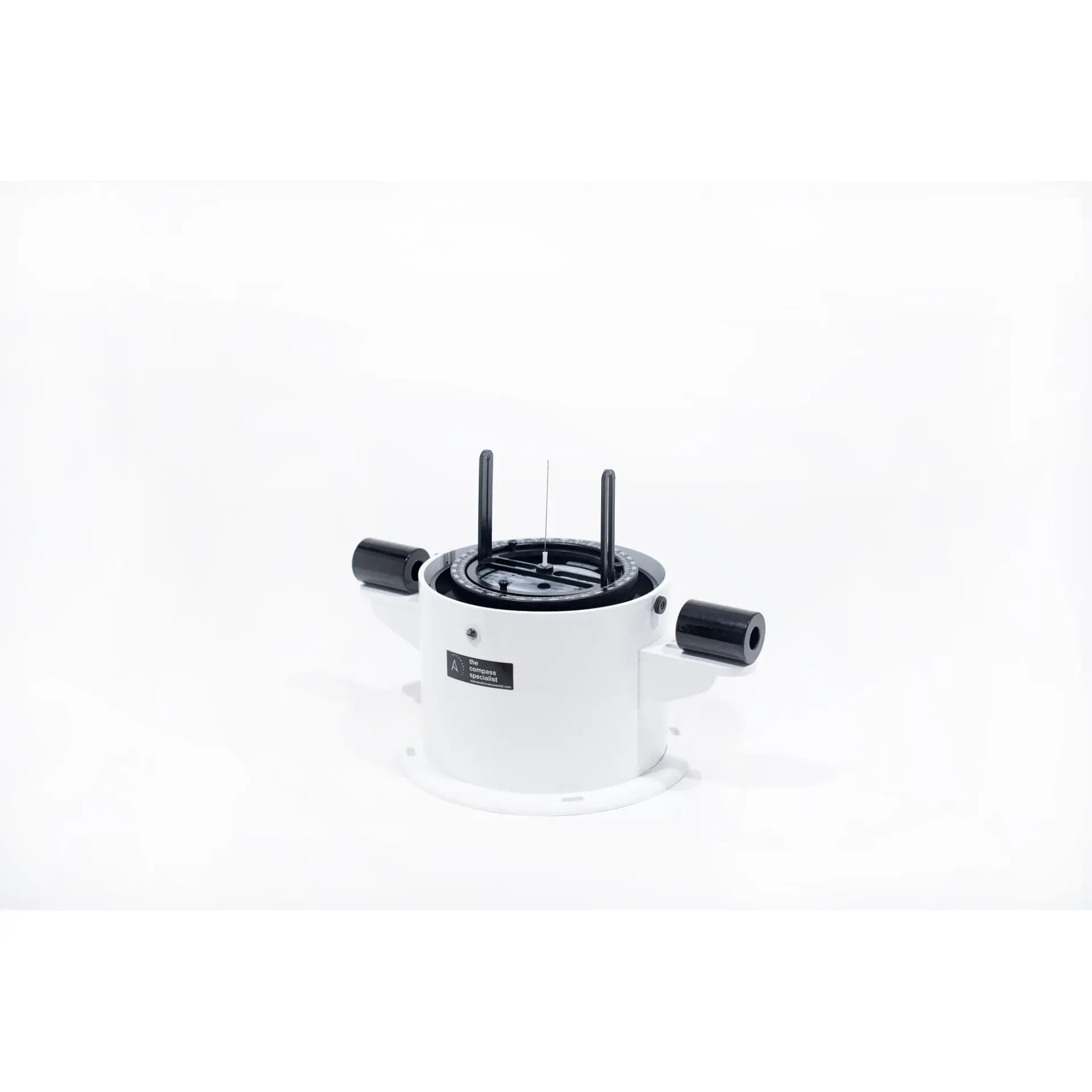

Autonauticinstrumental - Magnetic Compass with Log - C20-00128

Brand: Autonauticinstrumental
Precision magnetic compass with log for reliable marine navigation.
GTIN: 8436611670448
Vendor: Autonautic Instrumental
Availability: In stock
€2610.00 incl tax
i h

Features of the Magnetic Compass with Log

  • 125 mm compass with class A rose
  • Graduation of 1 degree
  • Provisions for NMEA0183 TMC sensor
  • Marine aluminium log
  • Quadrant correctors for steel hull

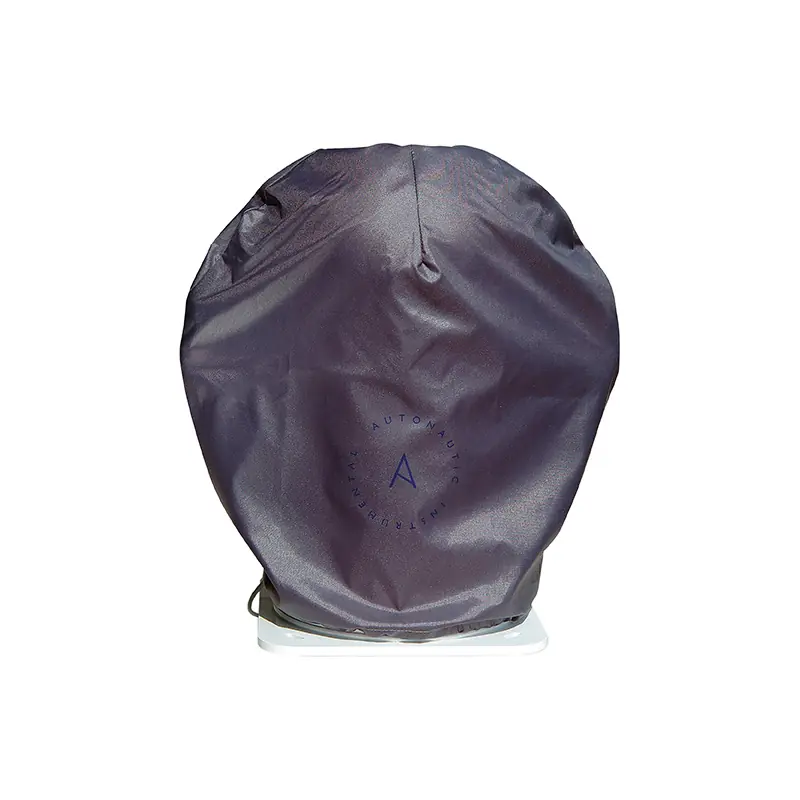

  • Waterproof textile cover
  • 10 years warranty
  • Reduced installation in shipyard

Applications

  • Tugboats
  • Workboats
  • Fishing
  • Yachts

Dimensions

Weight:15 kg including wooden transport case
Dimensions:Height: 310mm; Width: 400mm; Diameter: 280mm
Base diameter:280mm Ø
Construction:Marine aluminium 6060
Finish:Semi-gloss white powder coating (RAL 9016)

Operational

  • Magnetic moment: 1.1 Am2
  • Directional error: < 0.5 degrees
  • Electrical supply: For periscope only 12/24 Vdc

Environmental

  • IEC 60945 Equipment category: Exposed area
  • Operating temperature: -30ºC to 60ºC
  • Safety distance from the compass: See ISO25986:2019 Annex F

Certifications

  • MED/SOLAS
  • USCG
  • UK MER
  • Management system certified to ISO 9001
  • ISO 25862:2019
  • IEC 60945:2018
  • IMO Res. A 694 (17)
  • IMO Res. MSC.36 (63)-(1994 HSC Code) 13
  • IMO Res. MSC.97 (73)-(HSC Code 2000) 13
  • IMO Res. MSC.302 (87)
  • Type approval: RINA

Optional Accessories for the Magnetic Compass with Log

  • B+C correction kit - ref. B+C
  • Spare compass in wooden box - ref. C20-00131
  • Upper NMEA0183 sensor compass - ref. C20-00132

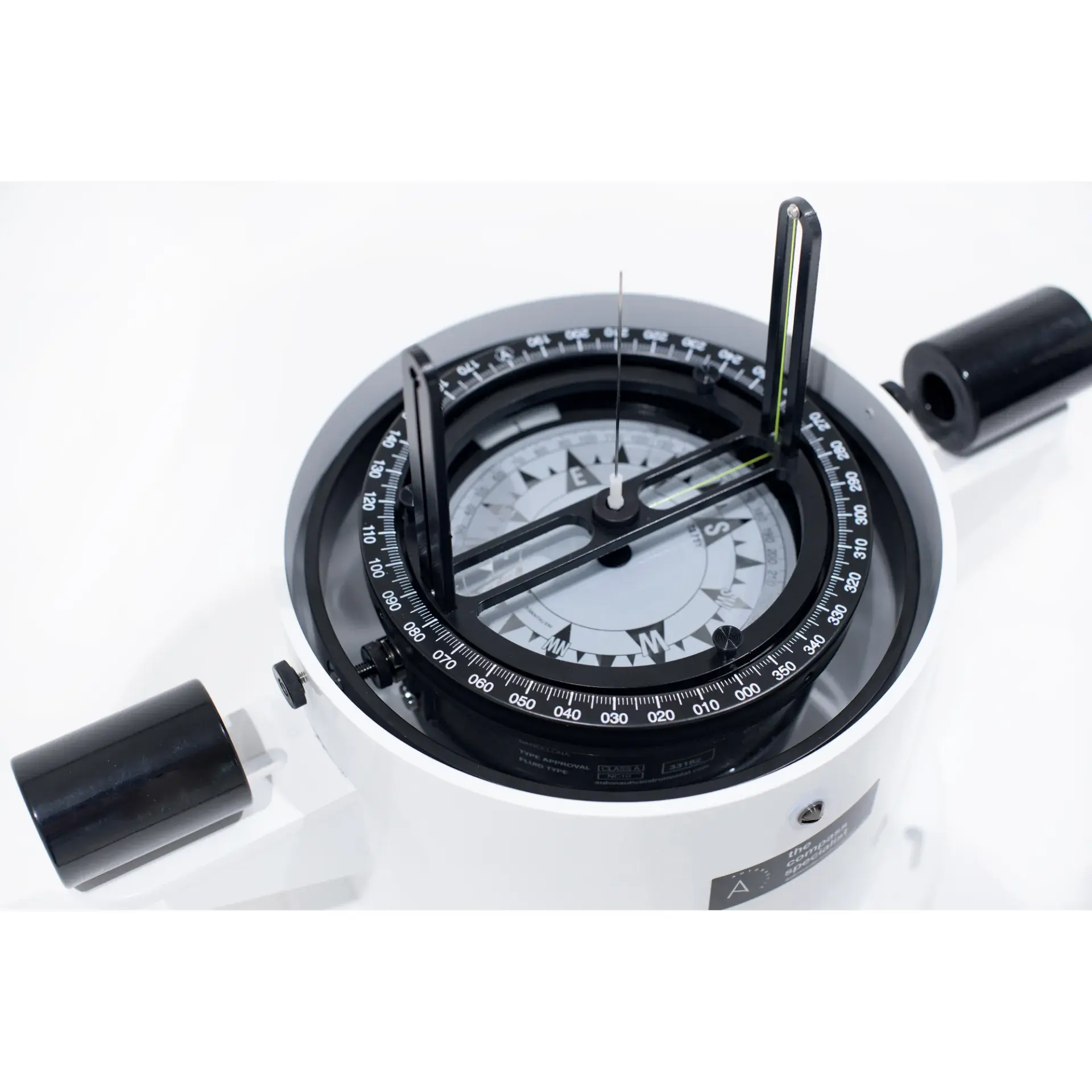

  • Azimuth ring - ref. C20-00136
  • Periscope - ref. C20-00135
