Product Description

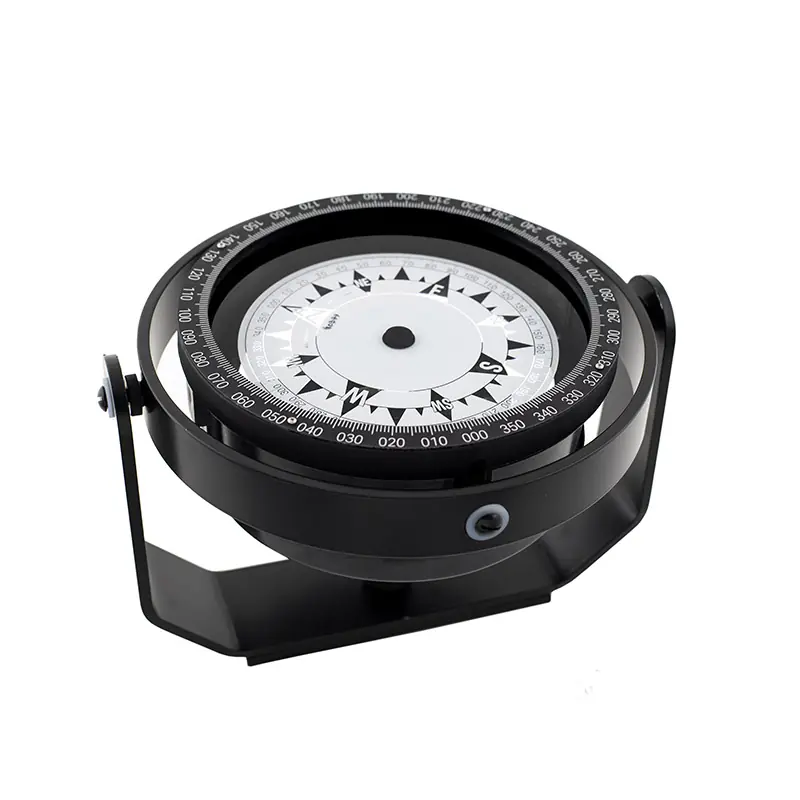

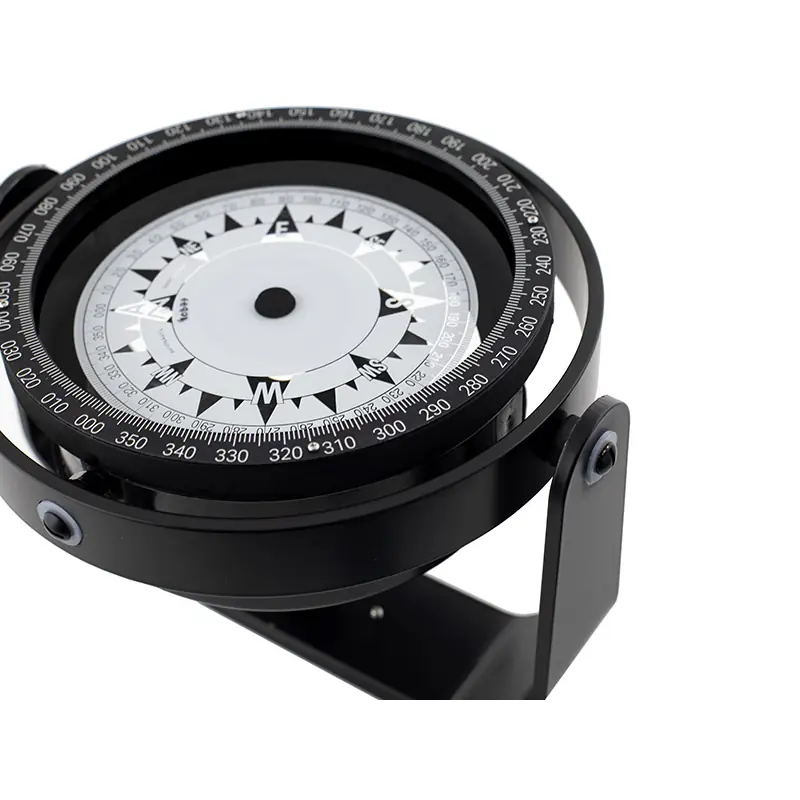

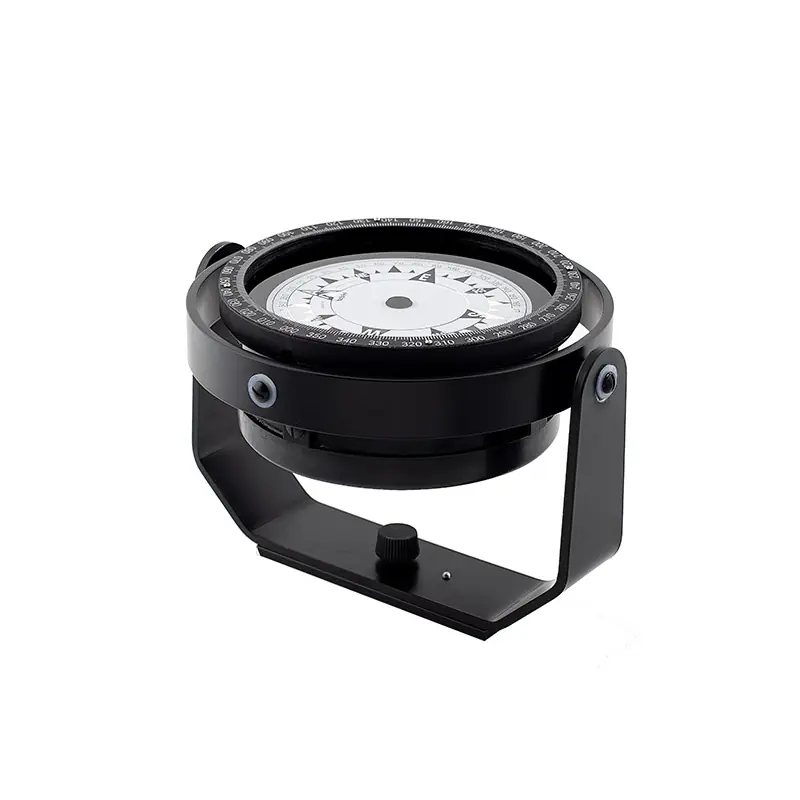

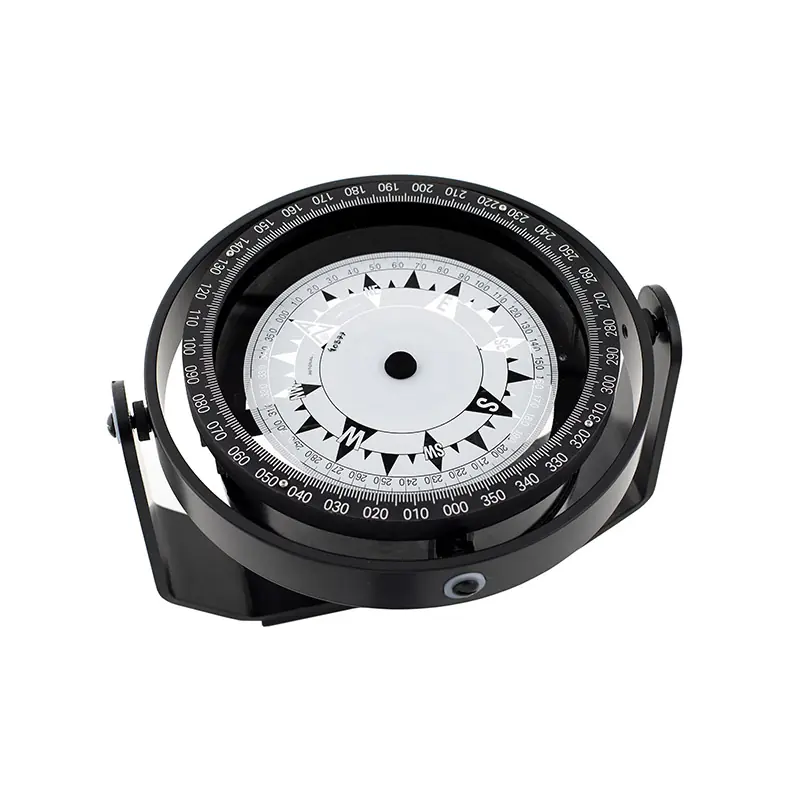

The support is made of marine-grade aluminium with an electrostatic coating finished in Jet Black (RAL9005). Fine-textured powder paint to protect against seawater corrosion. The C20-00137 comes with a mounting plate for easy installation.
Features of the Compass on the Bracket
- 125 mm compass with class A rose
- Graduation of 1 degree
- Marine quality aluminium binnacle

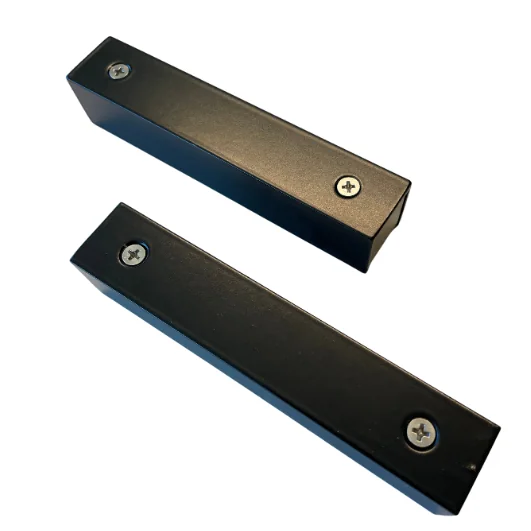

- Rectangular correctors for steel hull
- Exclusive 10-year warranty
- Powerful DirectiveForce magnets for quick heading fixation
- Deck mounting pad for easy installation
- Installation on bulkhead or panel
Dimensions
| Weight | 3.5 kg |
| Dimensions | Height: 161mm; Width: 222mm; Diameter: 200mm |
| Base diameter | 140mm x 50mm Ø |
| Construction | Marine aluminium 6060 |
| Finish | Semi-gloss white powder paint (RAL 9016) |
Operation
| Magnetic moment | 1.1 Am2 |
| Directional error | < 0.5 degrees |
Environmental
| IEC 60945 Equipment category | Exposed area |
| Operating temperature | -30ºC to 60ºC |
| Safety distance from the Compass | See ISO25986:2019 Annex F |
Certifications of the Compass on the Bracket
- MED/SOLAS
- USCG
- UK MER TYPE APPROVED
- ISO 9001 certified management system
- ISO 25862:2019
- IEC 60945:2018
- IMO Res. A 694 (17)
- IMO Res. MSC.36 (63)-(1994 HSC Code) 13
- IMO Res. MSC.97 (73)-(HSC Code 2000) 13)
- IMO Res. MSC.302 (87))
- Type approval: RINA
Optional Accessories
- B+C correction kit - ref. B+C
- NMEA0183 TMC sensor - ref. C20-00132
- Azimuth ring / Sight blades - ref. C20-00136
