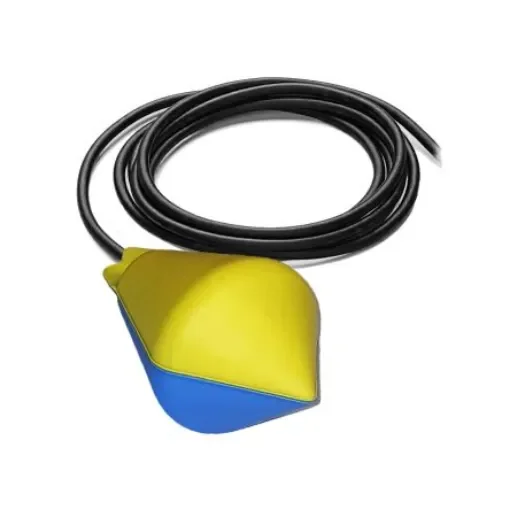

ATMI SOLIBA Series Tilt Level Switch Level Switch, SPDT Output, Cable Mount, Copolymer Polypropylene Body - SOLIBA10M
Ensure accurate high-level measurement in silos with the ATMI SOLIBA Tilt Level Switch.
Manufacturer part number: SOLIBA10M
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Tilt Level Switch
Mounting Type = Cable Mount
Switch Output = SPDT
Body Material = Copolymer Polypropylene
Cable Length = 10m
Maximum Operating Temperature = +85°C
Maximum AC Voltage = 250V
For Use With = Grains, Solids
This tilt level switch has been designed to provide high level measurement in silos or any other type of storage containers located in non-hazardous areas. Its operation is very simple: Vertically suspended at the desired high level point, the SOLIBA will tilt as the grain reaches the unit. To secure your facilities at a minimum cost, the installation of a SOLIBA high level mechanical tilt level switch is strongly recommended, even if your facilities are already equipped with other types of equipment such as: rotating paddles, vibrating forks, radars, capacitive and ultrasonic sensors, etc. The SOLIBA tilt level switch only operates when the high level is reached, unlike other types of level measurement devices that operate permanently The tilt level switch must be installed at the opposite side of the arrival of grain and at a certain distance from the silo walls. This to ensure an optimal tilting operation.Cut out power 20A Maximum temperature 85 °C Protection index IP68
