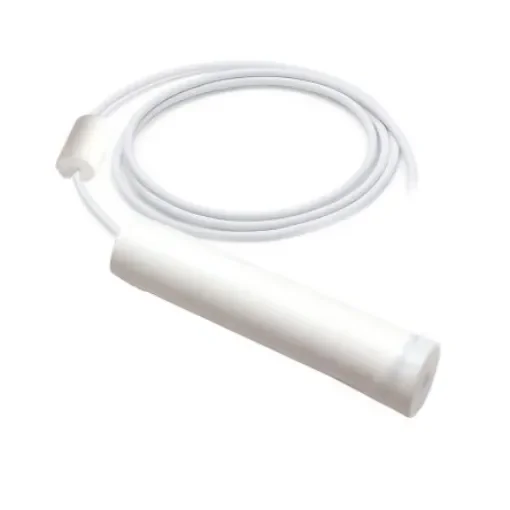

ATMI Cable Mount PVDF Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max - TUBA125C05M
Reliable float switch designed for aggressive liquids with a 5m cable and SPDT output.
Manufacturer part number: TUBA125C05M
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
For Use With = Aggressive Fluids
Mounting Type = Cable Mount
Switch Output = SPDT
Body Material = PVDF
Cable Length = 5m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +125°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 125V
Maximum Pressure = 2bar
This small tubular float level sensor is equipped with a TEFLON cable and a specially designed PTFE housing for extremely aggressive liquids, such as for example sulfuric acid and very hot liquids reaching temperatures up to 125°C. The TUBA 125 C level sensor has a ball inside a sealed polypropylene cylinder that will activate a microswitch according to its position. This principle is extremely reliable. The small diameter of this float (Ø 40 mm) allows its introduction by small holes often placed on the vertical walls of the tanks.Maximum pressure 2 bar Maximum temperature 125°C Protection index IP68
