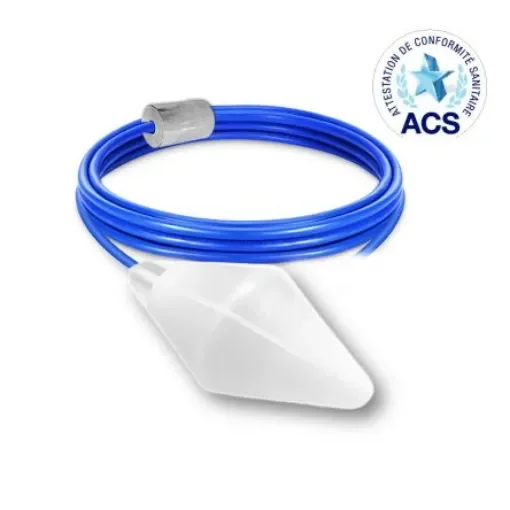

ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max - SOBAEPACS05M
Ensure precise water level control with the ATMI float switch, designed for drinking water applications.
Manufacturer part number: SOBAEPACS05M
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
For Use With = Drinking water
Mounting Type = Cable Mount
Switch Output = SPDT
Body Material = Copolymer Polypropylene
Cable Length = 5m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +85°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 125V
Maximum Pressure = 3.5bar
This ACS certified float level switch is constructed with special components for use in drinking water applications. As the liquid level reaches the unit, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel This float level switches is equipped with a stainless steel (AISI 316L) adjustable ballast, and ensures a very precise level measurement thanks to its +-/ 25° switching angle. The SOBA EP can also be used in high or low alarm (overfill protection or protection against idling). However, when the liquid is agitated by the presence of an agitator or in a water tower, you have to take a float with a wide angle like the ATS 165 EPMaximum pressure 3.5 bar Maximum temperature 85°C Protection index IP68
