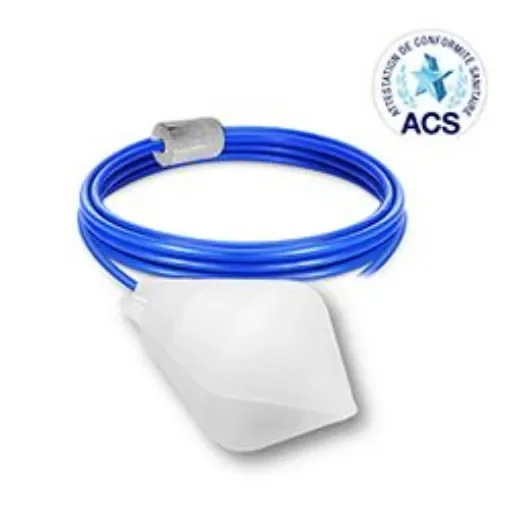

ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max - ATS165EPACS05M
Reliable float switch for drinking water with a 5m cable and SPDT output.
Manufacturer part number: ATS165EPACS05M
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
For Use With = Drinking water
Mounting Type = Cable Mount
Switch Output = SPDT
Body Material = Copolymer Polypropylene
Cable Length = 5m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +85°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 125V
Maximum Pressure = 3.5bar
This ACS certified float level switch is constructed with special components for use in drinking water applications. Thanks to its big switching angle of 165°, the ATS 165 protects the pumps engine and the electrical panels from jerking. This float the ideal solution for level control in tower tanks, for example. Also, it can detect the both high and low level in the same tank whose hysteresis does not exceed 1.5 meter. This float level switch can be connected directly to pumps up to 1.5 HP or through a relay if working with high power pumps.Maximum pressure 3.5 bar Maximum temperature 85°C Protection index IP68
