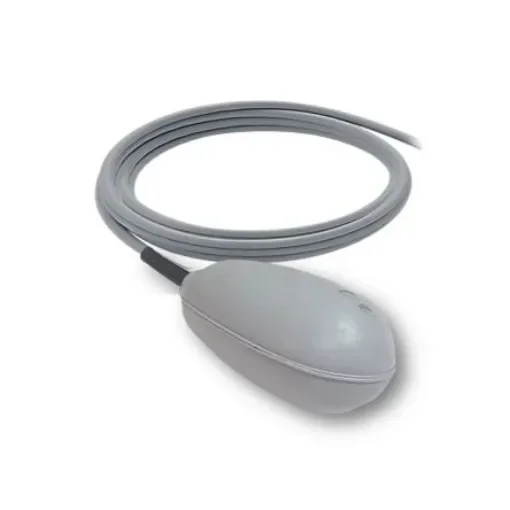

ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 10m Cable, SPDT, 250V ac Max, 125V dc Max - AQUAMEDIUMPVC10M
Reliable cable mount float switch for liquid level control with a 10m cable.
Manufacturer part number: AQUAMEDIUMPVC10M
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
For Use With = Liquid Level Alarm and Pump Controller
Mounting Type = Cable Mount
Switch Output = SPDT
Body Material = Copolymer Polypropylene
Cable Length = 10m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +85°C
Maximum AC Voltage = 250V
Maximum DC Voltage = 125V
Maximum Pressure = 3.5bar
This robust level regulator is equipped with internal ballast. As the liquid level reaches the regulator, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel. The AQUA MEDIUM is capable of penetrating the thick layers of grease found on waste water pumping stations, and it is the ideal level regulator for limited spaced applications. This model is also available in a bigger version. See AQUA XL. The AQUA MEDIUM level regulator is not suitable for agitated liquids. Please choose our float switch models: BIP STOP, AT 120, or ATS 165.Maximum pressure 3.5 bar Maximum temperature 70°C Protection index IP68
