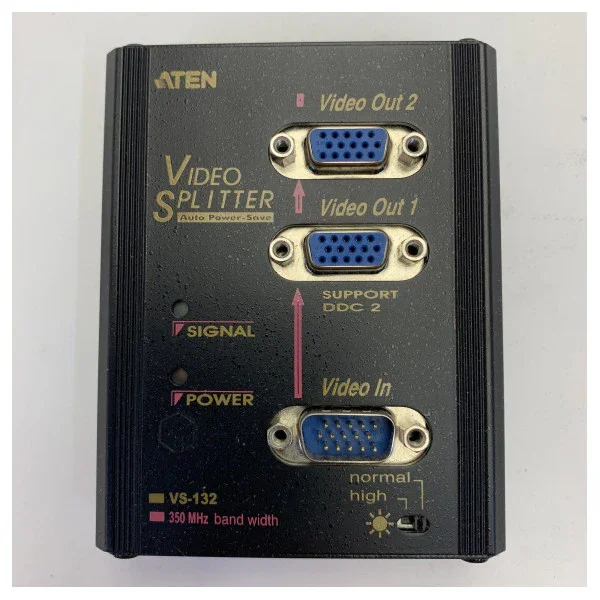

Aten VS-132 Video Splitter - Durable 2 Port VGA Splitter with Power Adapter
The Aten VS-132 Video Splitter is the ideal solution for anyone who wants to duplicate a single high-quality video signal to two different screens. Whether you are giving a presentation in a meeting room, sharing information in a classroom, or monitoring images in a control room, this active VGA splitter guarantees reliable and crystal-clear image transmission without signal loss.
Powerful Signal Amplification and Image Quality
Unlike passive splitters, the Aten VS-132 features a built-in signal amplifier. This ensures that the video signal can be transmitted over a distance of up to 65 metres without quality degradation. With an impressive bandwidth of 250 MHz, this device supports resolutions of up to 1920 x 1440 pixels. This keeps your images sharp, vibrant, and smooth on any connected screen.
User-Friendly and Compact Design
The installation of the Aten VS-132 is completely Plug and Play. No complicated software or configuration is required. You simply connect the source to the input and the screens to the outputs. Thanks to the sturdy metal housing, the device is resistant to intensive use and external interference is minimized. The included external power adapter provides a stable power supply, which is essential for long-term performance and a wide range.
Key Features
- Signal Duplication: Distributes a VGA input signal to 2 VGA outputs.
- Long Range: Supports cable distances of up to 65 metres for flexible setups.
- High Resolution: Suitable for razor-sharp images up to a resolution of 1920 x 1440.
- Stackable (Cascadable): Ability to link multiple units to support even more screens.
- Robust Build: Durable metal housing for optimal protection and heat dissipation.
Technical Specifications
The Aten VS-132 is designed with professional standards in mind. Below you will find the complete specifications:
- Video Input: 1 x HDB-15 Male (Blue).
- Video Output: 2 x HDB-15 Female (Blue).
- Maximum Resolution: 1920 x 1440 at 60Hz.
- Bandwidth: 250 MHz.
- Signal Type: VGA, SVGA, XGA, MultiSync.
- Maximum Distance: 65 metres (when using high-quality cables).
- Housing: Metal.
- Power Consumption: DC 9V (Power adapter included).
- Dimensions: 130 x 75 x 45 mm.
- Weight: 420 grams.
Contents of the Package
- 1x Aten VS-132 Video Splitter.

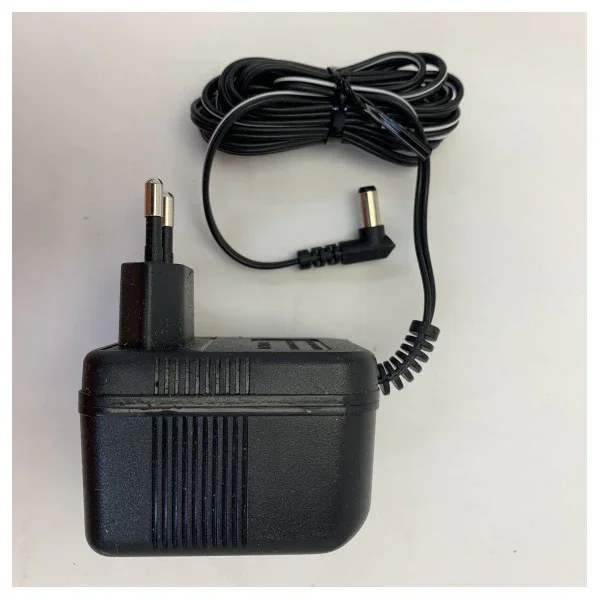

- 1x Power Adapter.

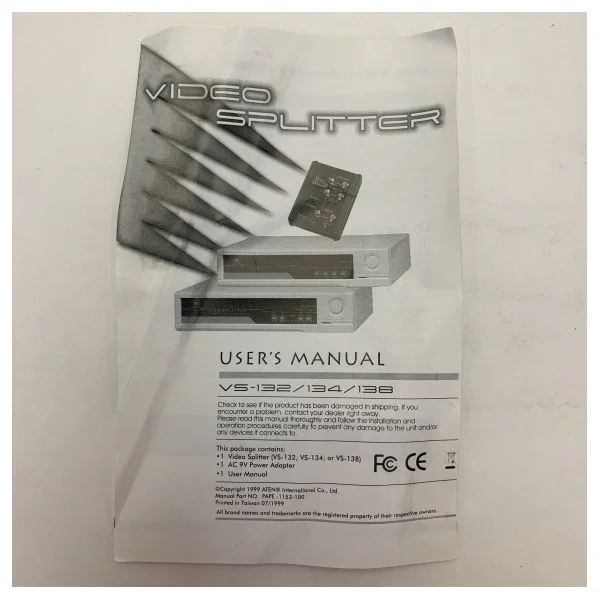

- 1x User Manual.
