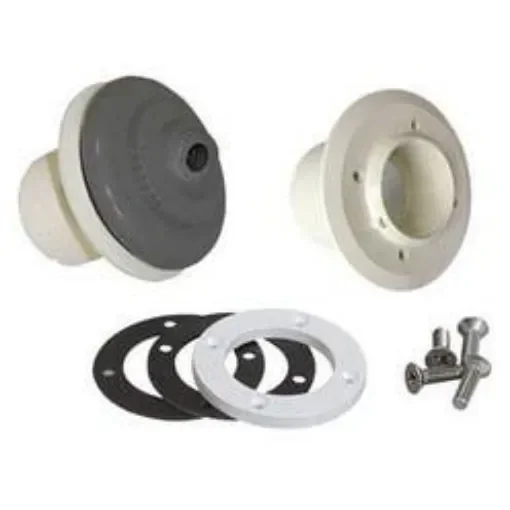

The Multiflow Return Inlet Threaded for Liner Pools in Anthracite is designed to efficiently return filtered and treated water to your pool, enhancing circulation and water quality. This model features a multi-flow system, allowing for adjustable flow rates to suit various pool sizes and requirements.
- Multi-Flow System: The inlet's eyeball is pre-marked with diameters of 14 mm, 20 mm, and 25 mm. Using the included punch tool, you can select the desired diameter during installation to achieve the appropriate flow rate.
- Flow Rate Options:
- 14 mm diameter: Up to 2.2 m³/h
- 20 mm diameter: Up to 4.5 m³/h
- 25 mm diameter: Up to 7 m³/h
- Durable Construction: Made from UV-treated ABS, the inlet is built to withstand various outdoor conditions, ensuring longevity and reliable performance.
- Easy Installation: Features a 2" external thread and a 50 mm internal connection, compatible with liner pools. The package includes all necessary accessories, such as gaskets and screws, for a secure and watertight installation.
Technical Specifications
- Material: UV-treated ABS
- Flow Rate:
- 14 mm diameter: Up to 2.2 m³/h
- 20 mm diameter: Up to 4.5 m³/h
- 25 mm diameter: Up to 7 m³/h
- Connection: 2" external thread and 50 mm internal connection
- Color: Anthracite
Materials
Dimensions
- Eyeball Diameters: 14 mm, 20 mm, and 25 mm (selectable during installation)
- External Thread: 2"
- Internal Connection: 50 mm
Compatibility Information
This return inlet is specifically designed for liner pools and is compatible with standard 2" external thread and 50 mm internal connections. Ensure that your pool's plumbing system matches these specifications for optimal performance.
