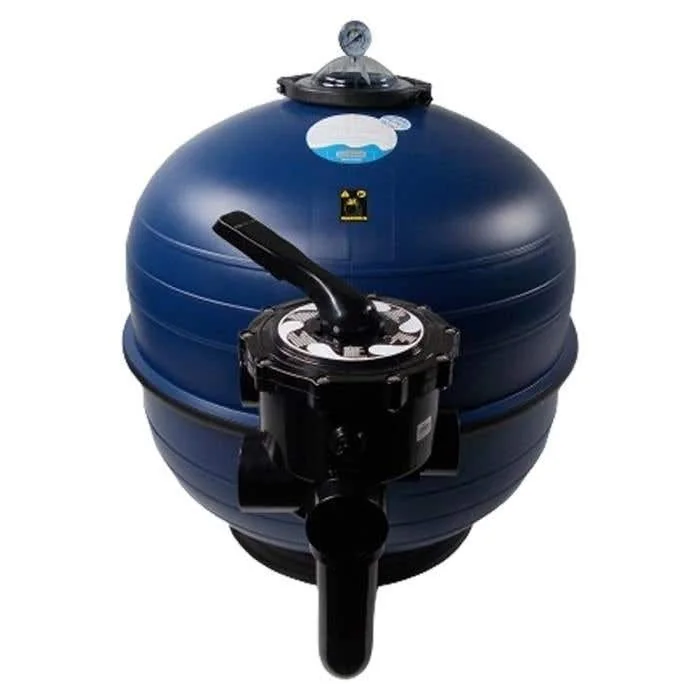

The AstralPool Aster D750 Side Mount Sand Filter is engineered to provide efficient and reliable filtration for medium to large-sized swimming pools. With a flow rate of 21,000 liters per hour (21 m³/h), it ensures optimal water clarity and cleanliness.
- High-Quality Construction: The filter body is constructed from laminated polyester and fiberglass, offering superior durability and resistance to outdoor conditions.
- Side-Mounted Multiport Valve: Equipped with a side-mounted multiport valve, the filter offers six positions: Filter, Backwash, Rinse, Recirculate, Waste, and Closed, facilitating easy operation and maintenance.
- Pressure Gauge and Manual Valves: Includes a pressure gauge for monitoring performance and manual air and water purge valves for efficient maintenance.
- Easy Maintenance: Features a screwless cover for quick opening and closing, simplifying the maintenance process.
Technical Specifications:
- Flow Rate: 21,000 liters per hour (21 m³/h)
- Maximum Filtration Speed: 50 m³/h/m²
- Maximum Working Pressure: 2.5 kg/cm²
- Sand Capacity: 290 kg
- Connections: 2 inches
- Material: Laminated polyester and fiberglass
- Color: Gray (RAL 7038)
- Base: Polypropylene
- Lid: Screwless design for easy access
Dimensions:
- Tank Diameter: 750 mm
- Height: 945 mm
- Width: 555 mm
- Depth: 325 mm
Compatibility Information:
- Pool Volume: Suitable for pools up to 168 m³
- Filter Media: Compatible with both sand and activated filter media
- Multiport Valve: Requires a 2-inch side-mounted multiport valve (Model 07444XP)
