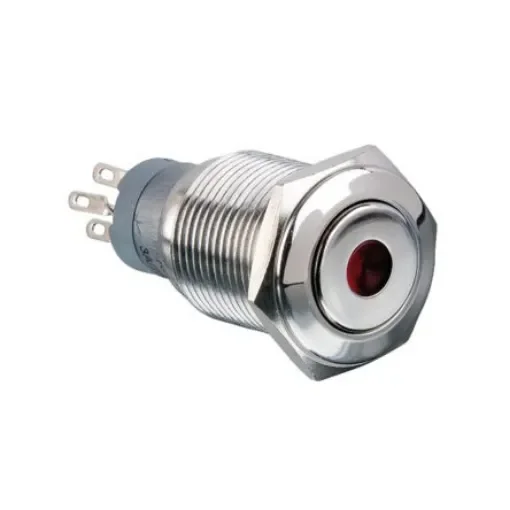

Arcolectric (Bulgin) Ltd Illuminated Push Button Switch, Momentary, Panel Mount, 16.2mm Cutout, DPDT, Red LED, 250V ac, - MP0045/1D2RD012S

Switch Operation = Momentary
Illuminated = Yes
Panel Cut Out Diameter = 16.2mm
Mounting Type = Panel Mount
Push Button Colour = Chrome
Contact Configuration = DPDT
Voltage Rating = 250V ac
Push Button Style = Round
LED Colour = Red
IP Rating = IP67
Contact Current Rating = 3 A
Contact Material = Brass
Manufacturer Part No. = MP0045/1D2RD012SV

Stainless Steel Double Pole Changeover Switches 16mm diameter Choice of switch action depending on part code: Part codes containing /1D1 or /1D2 - Momentary action Part codes containing /1E1 or /1E2 - Latching action Choice of Illumination style depending on part code: Part codes containing /1D1 or /1E1 - Centre dot Part codes containing /1D2 or /1E2 - Ring Choice of LED colour, depending on part code: /RD - Red, /GN - Green, /AM - Amber, /BL - Blue Choice of LED operating voltage depending on part code suffix: /012 - 12V DC, /220 - 220V DC MP0045/1 Low Profile MP0045/3 Prominent Button
