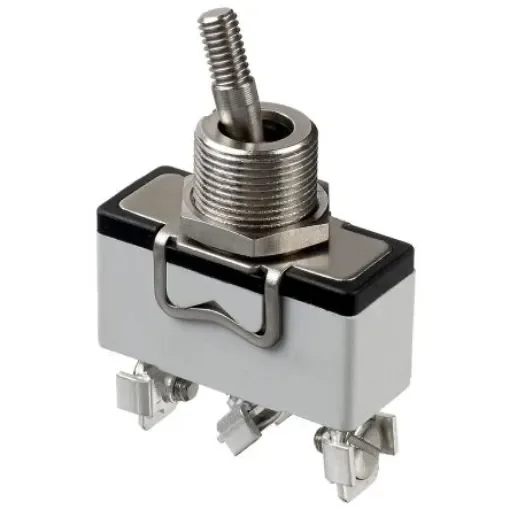

APEM Toggle Switch, Panel Mount, On-On, SPDT, Screw Terminal, 250V ac - 636H/X2330
APEM Toggle Switch with SPDT configuration, suitable for power applications up to 15A.
Manufacturer part number: 636H/X2330
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = SPDT
Switch Operation = On-On
Contact Current Rating = 10 (NF-VDE) A, 15 (CSA) A, 15 (UL) A
Mounting Type = Panel Mount
Terminal Type = Screw
Illuminated = No
Panel Cut Out Diameter = 12.2 (Dia.)mm
Actuator Length = 17.5mm
Actuator Material = Brass
Voltage Rating = 250V ac
Contact Resistance = 10mO
Minimum Operating Temperature = -20°C
APEM Toggle Switch 600H Series. Introducing the 600H Series of Toggle Switch from Apem. These are industrial Toggle Switches with high amperage and available with a metal or insulated lever. Features and Benefits. • Construction : Terminal and contact support are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength. • Rating : These switches are suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC • Metal or insulated lever • UL, CSA and NF-VDE (EN 61058-1) approved
