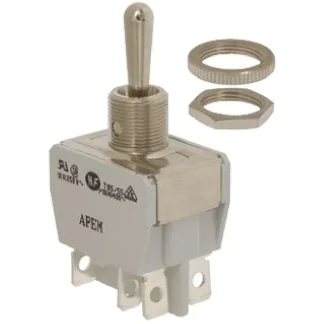

APEM Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal - 646H/2-5
Durable APEM DPDT toggle switch with a 40mm lever actuator, perfect for industrial applications.
Manufacturer part number: 646H/2-5
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = DPDT
Switch Operation = On-On
Contact Current Rating = 10 A @ 24 V dc
Mounting Type = Panel Mount
Terminal Type = Solder
Panel Cut Out Diameter = 12.5mm
Actuator Length = 40mm
Actuator Material = Nickel Plated Brass
Contact Material = Silver Nickel AlloyO
Minimum Operating Temperature = -20°C
Industrial Toggle Switch, 600H series. From Apem, this industrial toggle switch features a 40mm lever actuator that can be used with joystick-type sealing caps. With a 12mm bushing, this Apem switch boasts an ergonomic design and has contacts resistance welded to the terminal for increased durability. The front face of this 600H Series toggle switch is fully insulated and sealed, meaning it is ideal for use in industrial environments. Features and Benefits:. • Long lever • ø 12 mm bushing • Robust design
