APEM Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, 28V dc, IP67 - IPR3FAD-7/1
APEM's momentary push button switch features a 13.6mm cutout and IP67 rating, perfect for harsh environments.
Manufacturer part number: IPR3FAD-7/1
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Switch Operation = Momentary
Illuminated = No
Panel Cut Out Diameter = 13.6mm
Mounting Type = Panel Mount
Push Button Colour = White
Contact Configuration = SPST
Voltage Rating = 28V dc
Push Button Style = Dome
IP Rating = IP67
Contact Current Rating = 5 A @ 28 V dc
Contact Material = Gold Plated Silver
Manufacturer Part No. = IPR3FAD-7/1

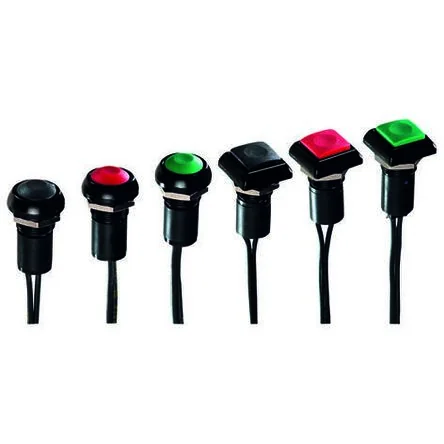

EN 50102 - IEC 512-4 - IEC 512-6. Sealed momentary pushbutton switches IP 67 Series IP – wire leads, ø 12mm bushing. For harsh environments. Resistant to salt spray. Very robust: IK06. Excellent tactile feedback. Available in round or square version. 500mm wire lead terminals.
