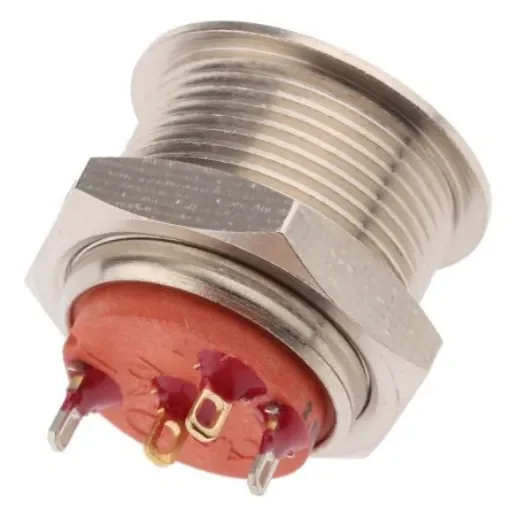

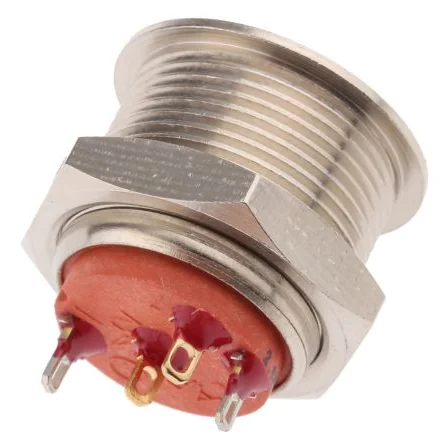

APEM Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPST, Red LED, 24/48V dc - AV09C7L3D2006

Switch Operation = Momentary
Illuminated = Yes
Panel Cut Out Diameter = 19.2mm
Mounting Type = Panel Mount
Contact Configuration = SPST
Voltage Rating = 24/48V dc
Push Button Style = Round
LED Colour = Red
Contact Current Rating = 50 mA @ 24 V dc
Contact Material = Gold Plated
Manufacturer Part No. = AV09C7L3D2006

AV Series Security Pushbutton Switches. Brought to you by Apem, this Security Pushbutton Switch features a mechanical stop which protects the contact mechanism and provides a high degree of impact resistance. With a robust Polybutylene housing, nickel plated brass bushings and silver-plated contacts, this AV series security switch is designed for reliability and durability over a long length of service. Features and Benefits:. • IP54 Environmental Protection • Momentary switch operation • Mechanical life of 100000 Cycles. Available in this range:. • Stock No: ; 278-1133 278-1133 is a 16mm screw terminal curved push-button switch • Stock No: ; 278-1149 278-1149 is a 16mm screw terminal flat push-button switch • Stock No: ; 190-0715 190-0715 is a 16mm solder terminal flat push-button switch • Stock No: ; 179-0906 179-0906 is a 19mm screw terminal curved push-button switch • Stock No: ; 179-0912 179-0912 is a 19mm screw terminal flat push-button switch • Stock No: ; 190-0721 190-0721 is a 19mm solder terminal illuminated push-button switch (Red) • Stock No: ; 174-6381 174-6381 is a 22mm screw terminal curved push-button switch • Stock No: ; 179-0899 179-0899 is a 22mm screw terminal flat push-button switch
