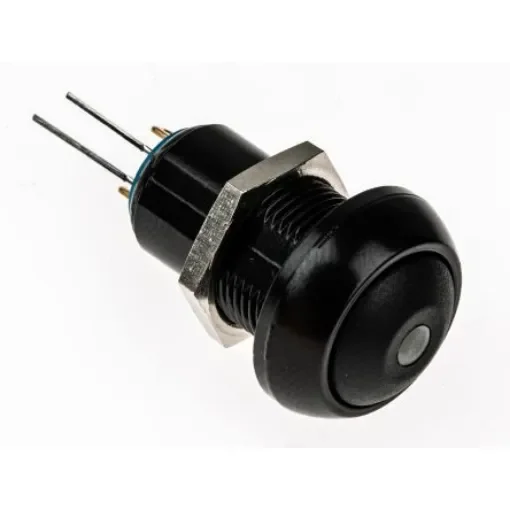

APEM Illuminated Miniature Push Button Switch, Latching, Panel Mount, 13.6mm Cutout, SPST, Red LED, 12/48/72V dc, IP67 - IPR1SAD2LOS
Compact illuminated push button switch with latching operation and IP67 rating for reliable performance.
Manufacturer part number: IPR1SAD2LOS
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Switch Operation = Latching
Illuminated = Yes
Panel Cut Out Diameter = 13.6mm
Mounting Type = Panel Mount
Push Button Colour = Black
Contact Configuration = SPST
Voltage Rating = 12/48/72V dc
Push Button Style = Dome
LED Colour = Red
IP Rating = IP67
Contact Current Rating = 5 A @ 28 V dc
Contact Material = Gold Plated Silver
Manufacturer Part No. = IPR1SAD2LOS
Single pole miniature panel mounting push-button switches. Epoxy sealed terminals prevent flux ingress during soldering IP67 rated LED illumination option
