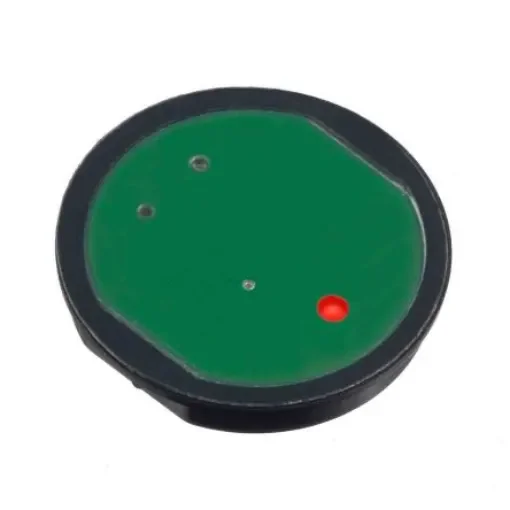

APEM Capacitive Switch Momentary,Illuminated, Red, NPN - CG111AP0RC
Experience touch-activated control with the APEM illuminated capacitive switch in red.
Manufacturer part number: CG111AP0RC
Switch Operation = Momentary
Switch Type = Capacitive
LED Colour = Red
Illuminated = Yes
Maximum Input Voltage = 12V dc
Output Type = NPN
Current Rating = 15mA
Activated by the touch of a finger, CG series switches are designed for mounting under a non-conductive front face (glass or polycarbonate) and are activated though the front face, transforming the inert facial into an active interface. Available in momentary or latching, they are perfectly adapted for interactive applications.52 million cycles Auto-calibration function Easy installation, immediate use Under-panel mounting : easily cleaned, robust, sealed No panel cut-out needed Long life adhesive, resistant to vibrations Dot illumination option
