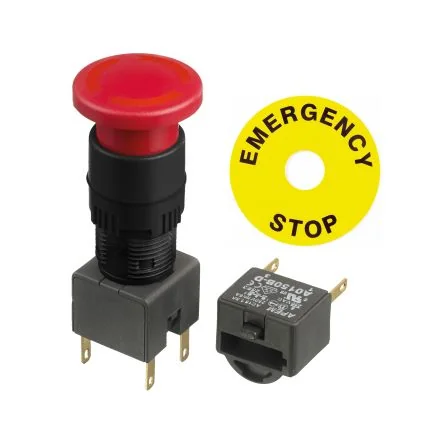

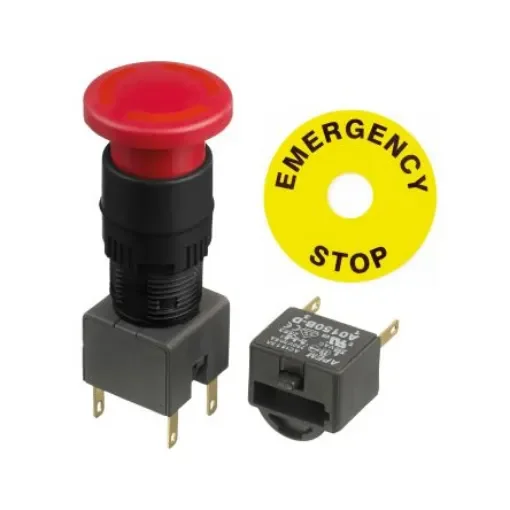

APEM A01ES Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65 - A01ES-DM+A0154B-D+A01YL1

Mounting Type = Panel Mount
Cutout Diameter = 16mm
Contact Configuration = 2NC
Voltage Rating = 250V ac
Series = A01ES
IP Rating = IP65
Colour = Red
Supply Current = 1.5A
Push Button Material = Plastic

BEAB, VDE, UL ; CSA (Emergency Stop, VDE, UL ; CSA only). Single and double pole PCB socket accessories are suitable for illuminated pushbuttons only. AO1 Series Switches - 16mm Operators. Modular construction illuminated and non illuminated Pushbutton, Keylock, Rotary and Emergency Stop switches to fit industry standard 16mm diameter cut-outs. Round, square and rectangular operators can be fitted to single, double, three and four pole switch blocks for a variety of applications. A complete Pushbutton switch assembly requires an operator, switch block, lens and lamp (if illuminated). Keylock and Rotary switches require an operator and switch block, while the Emergency Stop switch comes as a complete assembly supplied with a double pole N/C switch block and a yellow self adhesive label. Panel sealing to IP65 Gold plated silver contacts Pushbuttons illuminated with T1 midget groove filament lamp or LED Keylocks supplied with 2 keys Rotary lever switches ; 219-5784 219-5784 ; ; 219-5762 219-5762 feature CW lever rotation, all others are CCW lever rotation For switch blocks ; lenses see stk nos ; 219-5829 219-5829 ; ; 239-3483 239-3483 typically Selection of accessories includes flipguards, flush mounting bezels, PCB sockets and installation tools, see stk nos ; 278-1262 278-1262 , ; 325-2800 325-2800 , ; 325-2816 325-2816 ; ; 241-5757 241-5757 typically
