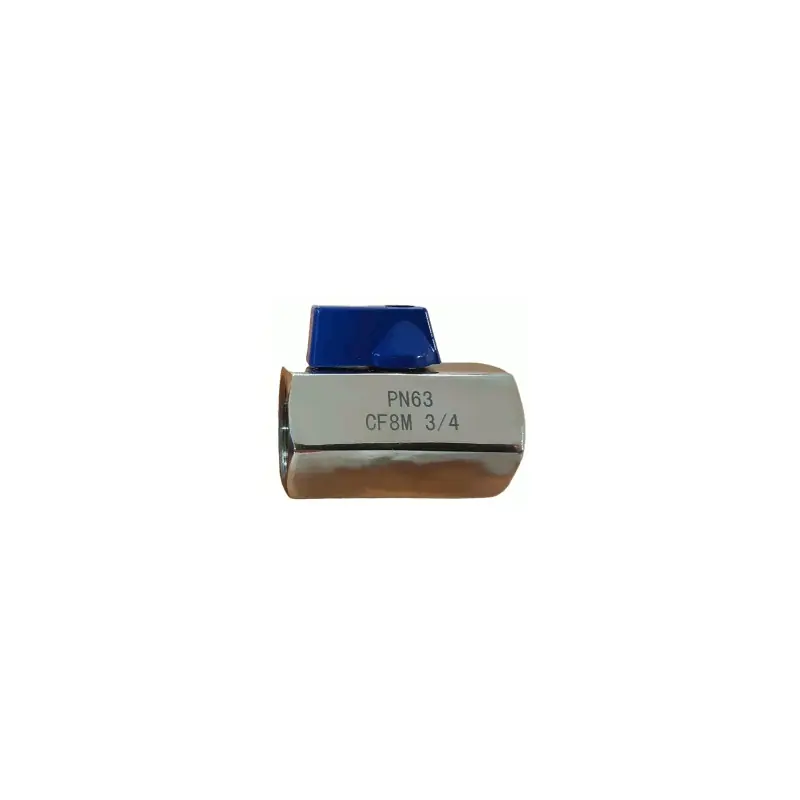

The Mini Female/Female Stainless Steel Ball Valve is designed for applications in the chemical, pharmaceutical, and petrochemical industries, as well as for hydraulic installations and compressed air systems. This compact valve offers reliable performance in demanding environments.
- Compact Design: Ideal for installations with limited space.
- High Pressure Rating: Handles working pressures up to 1000 PSI (68.9 bar).
- Corrosion Resistance: Constructed from 316 stainless steel for enhanced durability.
- Blow-Out-Proof Stem: Ensures safety during operation.
- Seat Materials: Available with PTFE or R-PTFE seats to suit various applications.
- Thread Type: Features NPT threaded end connections (ANSI B1.20).
- Compliance: Meets ASME B16.34 standards and is tested according to API 598.
Technical Specifications
- Pressure Rating: 1000 PSI (68.9 bar)
- Temperature Range: -20°C to +180°C
- Body Material: 316 Stainless Steel
- Ball Material: 316 Stainless Steel
- Thread Type: NPT (National Pipe Thread)
- Size: 1/4"
Materials
- Body and Ball: 316 Stainless Steel
- Seat Materials: PTFE or R-PTFE
Dimensions
- Size: 1/4"
- Length: Approximately 1.693 inches (4.3 cm)
- Width: Approximately 0.898 inches (2.3 cm)
- Height: Approximately 0.276 inches (0.7 cm)
- Weight: Approximately 0.21 lbs (0.095 kg)
Compatibility Information
This valve is compatible with various media, including water, oil, and gas, making it suitable for a wide range of applications in industrial settings.
