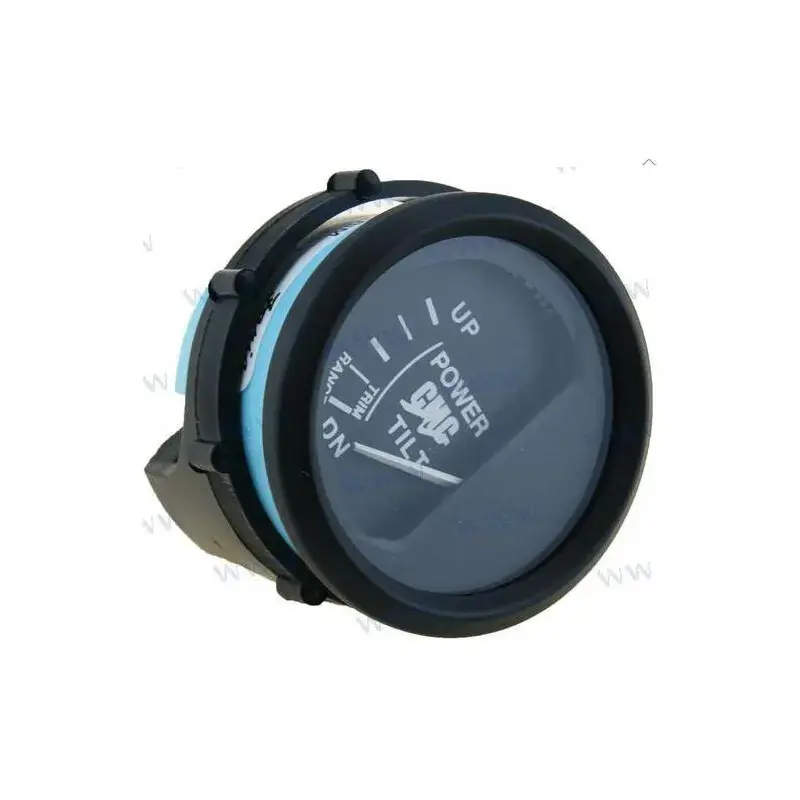

The tilt indicator gauge is an essential analog instrument for controlling the tilt (trim) of outboard and inboard motors. It allows real-time monitoring of the motor position and adjustment of the optimal angle according to navigation, improving boat efficiency and performance.
Operation
- Receives electrical signal from the trim sensor mounted on the engine
- Displays tilt angle via analog needle
Technical Specifications
- Easy-to-read analog indicator
- Compatible with most standard trim sensors*
- Universal dimensions for instrument panels
- Standard 12V power supply*
- Flush mount installation
Advantages
- Instant display of motor angle
- Facilitates fine and safe position adjustment
- Robust and designed for marine environments
Applications
- Trim control on outboard and inboard engines
- Improves performance and reduces fuel consumption
- Ideal indicator for recreational and fishing boats
Installation and Use Tips
- Verify compatibility with existing sensor
- Connect according to manufacturer’s wiring diagram
- Avoid direct water exposure
| Type | Analog |
|---|
| Voltage | 12V* |
|---|
| Compatibility | Standard tilt sensors* |
|---|
| Installation | Flush mount panel |
|---|
*Check specific compatibility according to motor and installed trim sensor.
