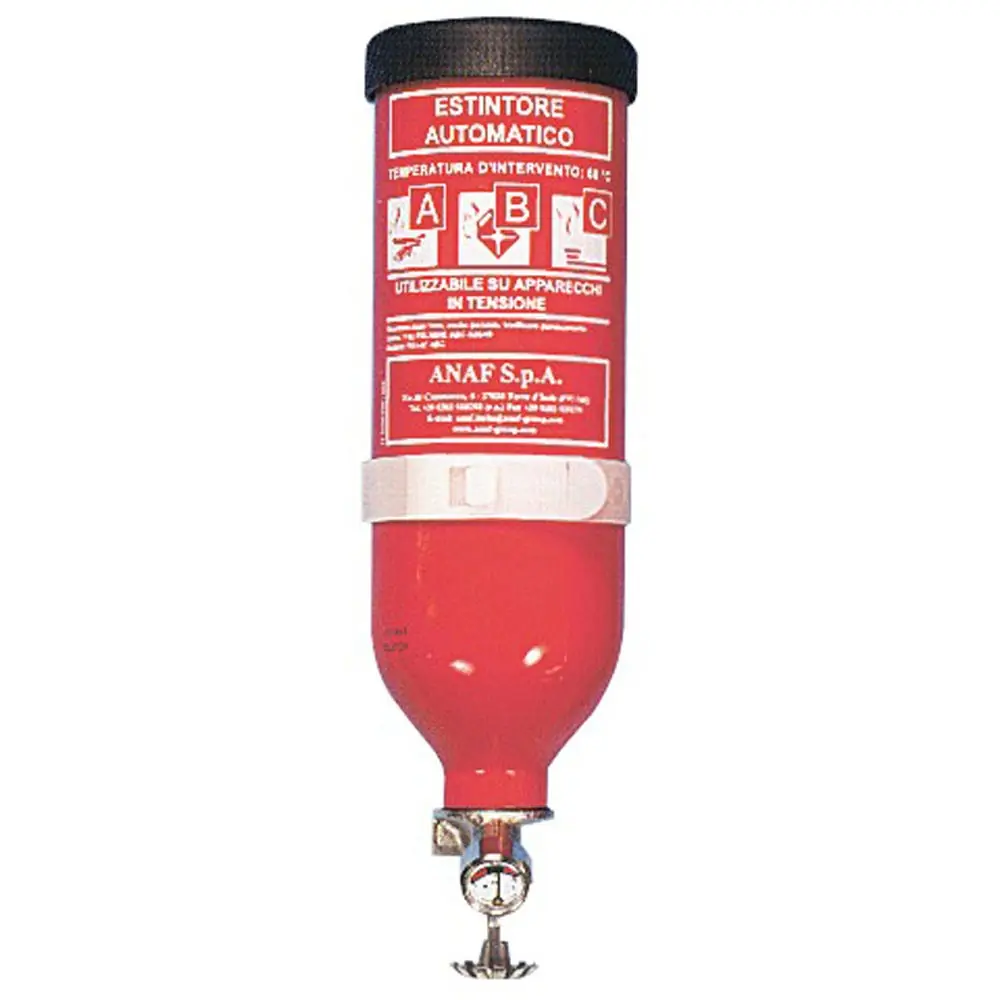

Key Features:
- Automatic activation at 68°C (154°F)
- Seamless aluminum cylinder with polyester resin exterior for enhanced durability
- Equipped with a sprinkler-type valve with a nickel-plated body and pressure gauge
- Corrosion-resistant external valve components
- Utilizes ABC multipurpose dry powder for effective fire suppression
- Compatible with vertical wall mounting using the included metal bracket
- Suitable for all fire classes except metal fires
Technical Specifications:
- Fire Classes: A, B, C
- Activation Temperature: 68°C (154°F)
- Operating Temperature Range: –30°C to 60°C (–22°F to 140°F)
- Discharge Time: Approximately 15-20 seconds
- Jet Range: Up to 4 meters
- Extinguishing Agent: ABC multipurpose dry powder
- Cylinder Material: Seamless aluminum alloy
- Valve Material: Nickel-plated body
- Pressure Gauge: Included for monitoring pressure levels
Materials:
- Cylinder: Seamless aluminum alloy with polyester resin coating
- Valve: Nickel-plated body
- Extinguishing Agent: ABC multipurpose dry powder
Dimensions:
- Height: 340 mm
- Diameter: 160 mm
- Weight: 5.0 kg
Compatibility Information:
- Designed for use in engine rooms, machinery spaces, and other areas where automatic fire suppression is required
- Suitable for installation in vertical positions using the provided metal bracket
Additional Details:
- Manufactured by Anaf Group, a company specializing in fire protection equipment
- Product complies with relevant safety standards and certifications
