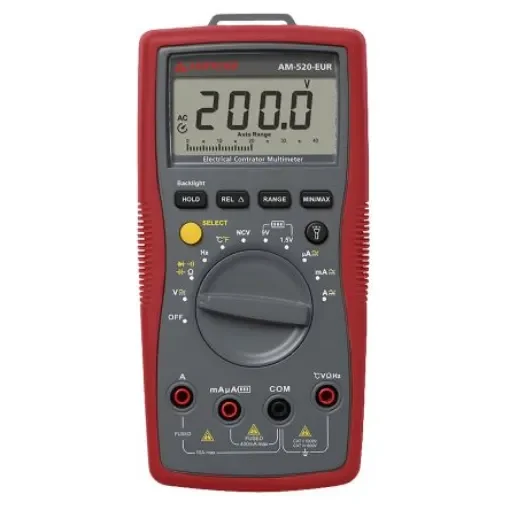

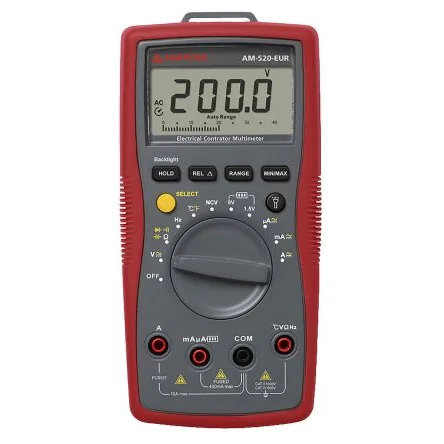

Amprobe AM-520-EUR Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 750V ac Max

Multimeter Type = Handheld
Model Number p = AM-520-EUR
Absolute Maximum DC Current Measurement = 10A dc
Absolute Maximum Capacitance Measurement = 4mF
Maximum Frequency = 400Hz
Safety Category Level = CAT II, CAT III
Dimensions = 182 x 90 x 45mm

CAT III 600V, CAT II 1000V. 1 x 9V(6F22) battery installed Test leads 1 x Type-K probe Velcro strap Carrying case and users manual. AM-520-EUR Digital Multimeter. Designed primarily for HVAC professionals, the AM-520 auto-ranging digital multimeter offers all the most commonly used HVAC digital multimeter features such as temperature, microamps to troubleshoot flame sensors, and capacitance to check motor startup capacitors. With its CAT III safety rating, this high voltage multimeter measures a broad range of electrical parameters. The backlit LCD display makes it easy to read, and it's easy to use with non-contact voltage detection, the third-hand probe holder, and the built-in flashlight. Features and Benefits:. Measures AC/DC voltage up to 600V, AC/DC current, resistance, frequency, capacitance and temperature. CAT III 600V safety rated. Non-contact voltage detection enhances safety. Audible continuity quickly identifies shorts and opens. Diode test to verify polarity. Data hold freezes the reading on the display for further analysis. MIN/MAX recording records min/max measurements over time to show voltage fluctuations. Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range. Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a third hand test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter. Auto and manual-ranging delivers maximum flexibility. Backlit LCD display with analog bar graph makes it easy to view results
