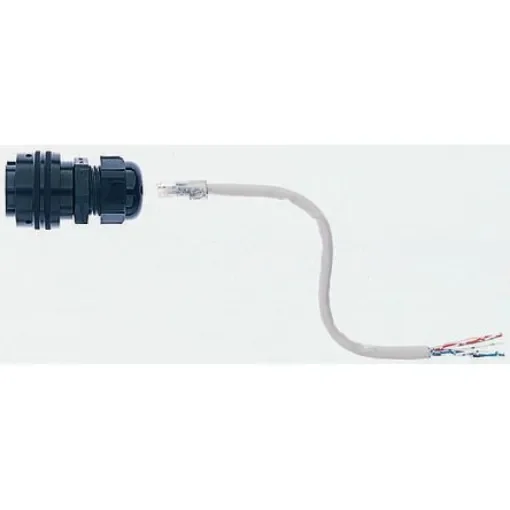

Amphenol Socapex RJF Series RJ Field Connector, Cat5e 1 Port - RJF 6B

Ethernet Connector Type = RJ45 Connector
LAN Category = Cat5e
Number of Ports = 1
Shield Type = Unshielded
IP Rating = IP68
Series = RJF

Amphenol RJ45 Ethernet PlugThe Amphenol RJF series RJ45 Ethernet plug with plastic gland are the latest devices that allow Ethernet Cat 5e connection For 10 BaseT or 100 BaseTX networks in harsh environments. These RJ field Ethernet plugs are shock, vibration, and traction resistant. They also have 4-position mechanical coding/polarization. These RJF Ethernet plugs incorporate an RJ45 cordset retention. Additionally, a patented RJStop system allows the usage of a standard RJ45 cordset. A 1/4 turn MIL-C-26482 type bayonet coupling mechanism is used to connect these RJ Field series RJ45 plugs to female receptacles without the need of field cabling tools. It is compatible with cable diameter between 6mm and 13mm.Features and BenefitsImproved EMI protection Aluminium shell - olive drab cadmium plating No cabling operation in the field and no tools required Sealed against fluids and dust
