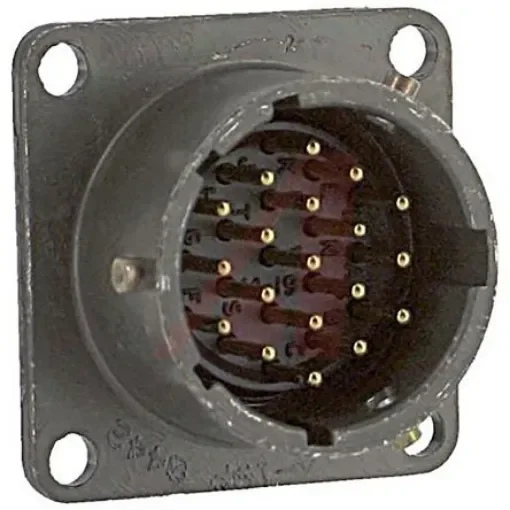

Amphenol Socapex, PT, Copper Alloy 19 Way Panel Mount MIL Spec Circular Connector ReceptacleGreen, Pin Contacts,Shell - PT02A-14-19P

Number of Contacts = 19
Gender = Female
Contact Gender = Male
Voltage Rating = 1 kV ac
Shell Size = 14
Mounting Type = Panel Mount
Military Standard = MIL-DTL-26482
Termination Method = Solder
Mating Type = Bayonet
Connector Size = Miniature
Body Orientation = Straight
Housing Material = Aluminium
Maximum Operating Temperature = +125°C

Amphenol PT Series Connectors. The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors. PT Solder is UL Approved Under File #E115497 Aluminum Shell Components For The Series 5 Key/ Keyway Polarisation With Bayonet Lock Coupling Wide Range of Shell Sizes (8 Through 24)
