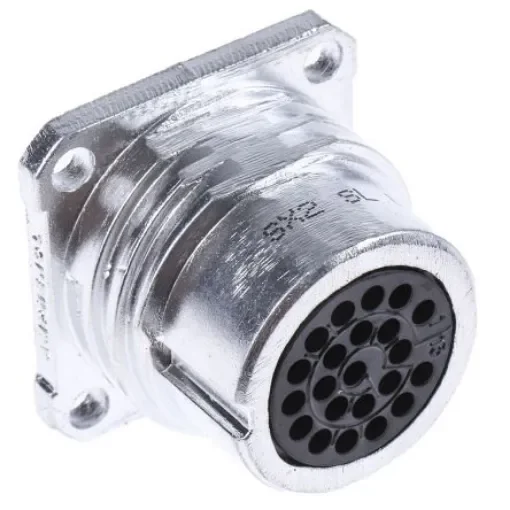

Amphenol Socapex Circular Connector, 22 Contacts, Panel Mount, Socket, Female, SL61 Series - SL EF 222 P

Number of Contacts = 22
Mounting Type = Panel Mount
Connector Size = Standard
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
Current Rating = 7.5A
Body Orientation = Straight
Voltage Rating = 150.0 V
Contact Plating = Gold
Minimum Operating Temperature = -40°C

Amphenol Circular ConnectorThe Amphenol SL61 series 22-pole female circular connector has a socket-type connection. This panel mount receptacle and receptacle locking ring connector has a voltage rating of 150V and a current rating of up to 7.5A per contact. The circular connector has a compact design with easy wiring and screw lock thread for secure mating attenuation. The connector is made of aluminium alloy with nickel plating which provides them excellent reliability and robustness. Amphenol - SL 61 Series Circular Connectors This family of connectors is widely used in industrial and electronic applications. This series includes sockets fitted with male or female contacts, plugs with a choice of straight or angled connectors and accessories (blanking plugs, sealing sleeves). Available in four enclosure sizes, four types of contacts including currents ranging from 7.5 to 50 Amperes, and different contact arrangements. Connected using screws, with positioning and guiding pin.Features and BenefitsStraight body orientation Solder termination Contact size is 20 Operating temperature ranges between -40°C and 85°C Receptacle with locking ringApplicationsAutomation Entertainment (brand-lights) Instrumentation Power distribution Robotics TransportCertificationsIP55 rated
