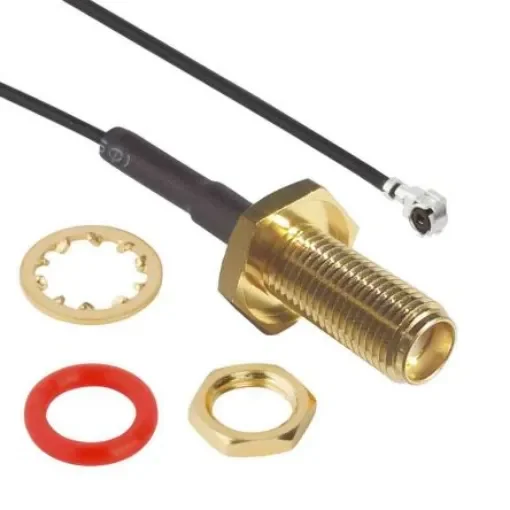

Amphenol RF SMA Series Female, Male Bulkhead SMA Connector, 50O, Right Angle Body - 336320-12-0150

Coaxial Connector Type = SMA Connector
Mounting Type = Bulkhead
Impedance = 50O
Body Orientation = Right Angle
Bulkhead = Yes
Series = SMA

;b>Amphenol SMA Series ;/b>. Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 26.5 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and - 36 threaded coupling, which offers high performance in a compact design. For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer. ;b>Features and Benefits ;/b>. ;ul> ;li>Light weight, compact and vibration proof design ;/li> ;li>Low cost commercial grade (Brass SMA) available in nickel or gold plating ;/li> ;li>Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables ;/li> ;/ul>. ;b>Applications ;/b>. ;ul> ;li>Base stations ;/li> ;li>Antennas ;/li> ;li>Telecommunications ;/li> ;li>Instrumentation ;/li> ;li>PC/LAN ;/li> ;/ul>
