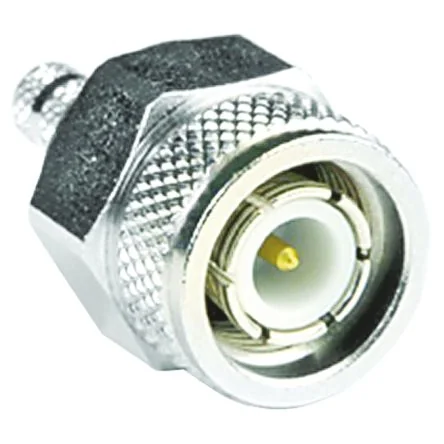

Amphenol RF, Plug Cable Mount TNC Connector, 50O, Crimp, Solder Termination, Straight Body - 031-6499

Coaxial Connector Type = TNC Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Crimp, Solder
Body Orientation = Straight
Cable Type = LMR-200
Operating Frequency = 0 to 6GHz
Body Plating = Nickel
Polarity = Normal
Contact Material = Beryllium Copper, Brass
Contact Plating = Gold

Amphenol 50 Ohm TNC RF Rugged Connectors. 50 Ohm TNC RF coaxial rugged IP67 connectors for use in harsh conditions. These TNC RF coaxial rugged plugs and jacks have a single piece body design allowing improved performance in harsh shock and vibration conditions. An internal gasket and external sealed ring with adhesive heatshrink prevent ingress from both ends of the these rugged TNC connectors making them fully submersible and impenetrable to fluids according to IP67 in both mated and unmated conditions. Typical applications for these IP67 rugged TNC RF coaxial plugs and jacks include transportation, military, mining and construction, industrial control and other outdoor applications where a sealed connector is needed. For use with RF coaxial cable type LMR-200, available with different orientations, mounting styles and reverse polarity option.
