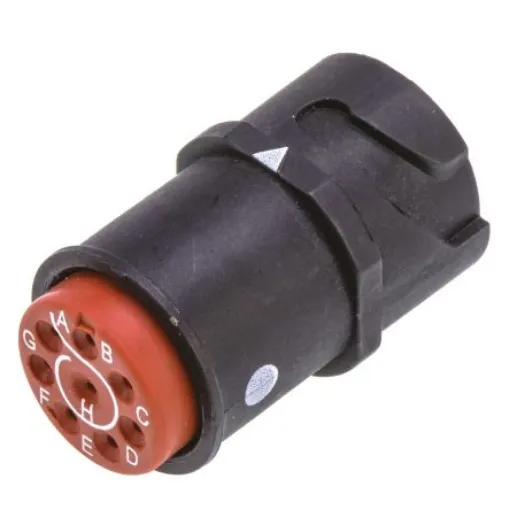

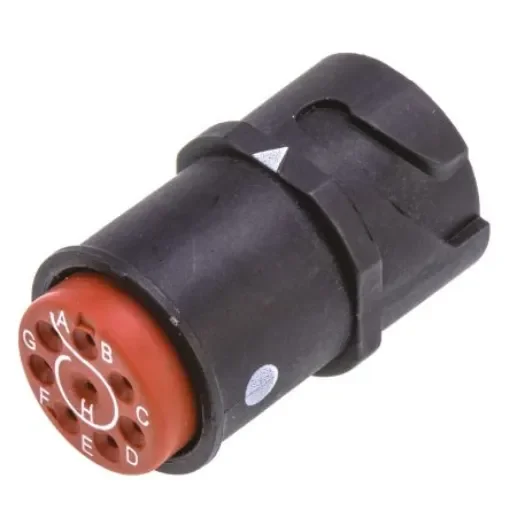

Amphenol PCD US, Twist & Lock 8 Way Cable Mount MIL Spec Circular Connector, Socket Contacts,Shell Size 7, Quick Connect - SJS830200
Durable 8-way circular connector with quick connect feature for reliable industrial applications.
Manufacturer part number: SJS830200
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Contacts = 8
Contact Gender = Female
Current Rating = 5.0A
Shell Size = 7
Mounting Type = Cable Mount
Termination Method = Crimp
Mating Type = Quick Connect
Connector Size = Standard
Body Orientation = Straight
Series = Twist & Lock
Minimum Operating Temperature = -65°C
Amphenol Circular ConnectorThe Amphenol SJS series 8-contact black female circular connector has a socket connection. This in-line cable mount connector has a current rating of up to 5A per contact. It is made from polyamide 6/6(nylon) material with stainless steel contact retainer and interfacial and triple barrier rear seal provides complete environmental sealing. The housing colour of connector is black and the marking colour is white.Features and BenefitsShell size is 7 Crimp termination Durability of 100 mating cycles Operating temperature ranging between -65°C and 125°C Straight body orientationApplicationsFactory & Industrial Automation Industrial networking Manufacturing Measurement and instrumentation Process ControlCertificationsIP55 rated
