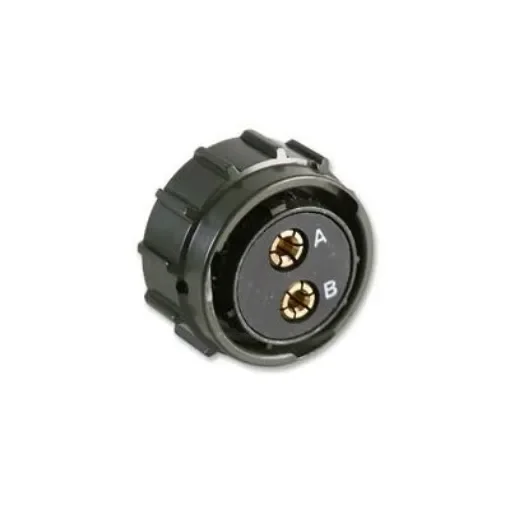

Amphenol Limited, 62GB 2 Way Cable MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 18, Bayonet, - 62GB-56TG18-02SN-044

Number of Contacts = 2
Gender = Male
Contact Gender = Female
Current Rating = 45A
Voltage Rating = 1.5 kV
Shell Size = 18
Mounting Type = Cable
Military Standard = MIL-DTL-26482
Mating Type = Bayonet
Body Orientation = Straight
Series = 62GB

The Amphenol 62GB series connector brings the advantage of keyway orientation to reduce mismating around multiple connectors. They feature aluminium shells with brass or stainless steel options available. A resilient neoprene insulator integrated rear wire sealing grommet guarantees a liquid tight assembly.Temperature operating range : -55°C to 125°C Wire gauges and current carrying capabilities : Upto 45A and size 24 to 8 AWG wires Connectors contacts are gold plated
