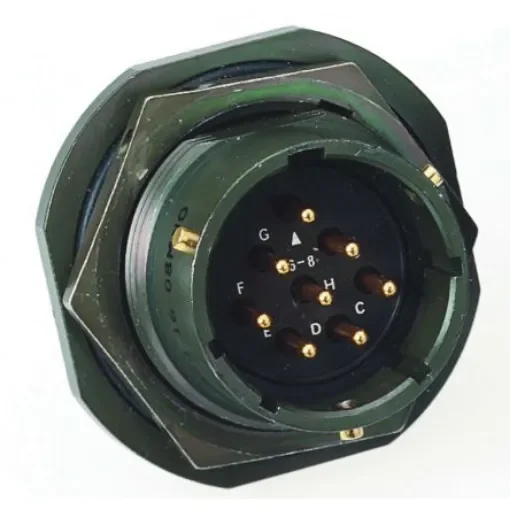

Amphenol Limited, 04 8 Way Cable MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 12, Bayonet, MIL-DTL-26482 - 62GB-16F12-08SN-760

Number of Contacts = 8
Gender = Male
Contact Gender = Female
Current Rating = 7.5A
Voltage Rating = 850 V
Shell Size = 12
Mounting Type = Cable
Military Standard = MIL-DTL-26482
Mating Type = Bayonet
Body Orientation = Straight
Series = 04

The Amphenol 62GB series miniature bayonet lock plug connector, 08 contacts, shell size 12, 760 deviation. It is a solder connector and contact type is S and orientation is N. In these zinc cobalt olive drab finish for high resistance to corrosion. It insert polychloroprene rubber compounded.High degree of environmental protection when mated Durable construction with stainless steel shell Keying to prevent mismating Supplied with gold plated contact
