Amphenol Industrial, Surlok Plus RADSOK EV Connector Socket, 300A - SLPIRCTPSB0 / C10-730191-1200

Range = R4 RADSOK
Series = Surlok Plus
Connector Type = RADSOK
Number of Rows = 1
Number of Contacts = 1
Wire Size = 70 mm², 85 mm²
Current Rating = 300A
Operating Voltage = 1000V
Connector Gender = Female
Orientation = Straight
Termination Method = Screw
Better World Product = Yes
Depth = 55.9mm

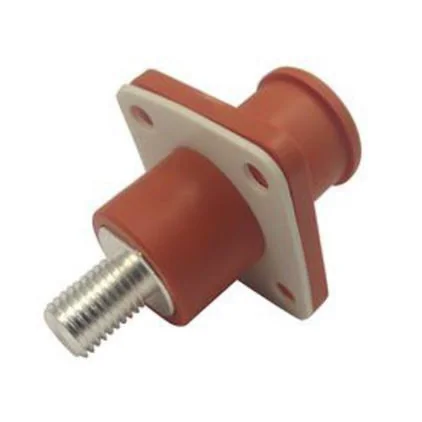

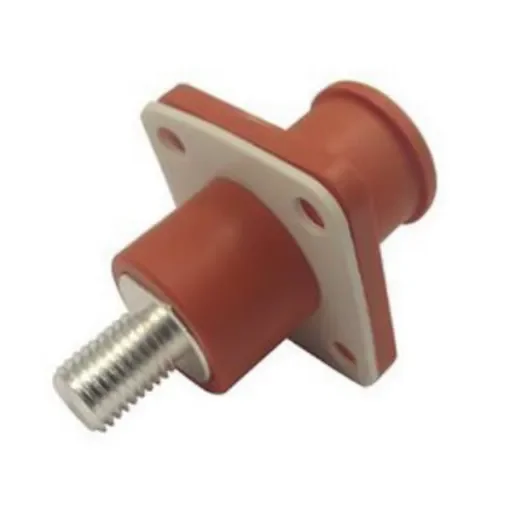

10.3mm SurLok Plus Receptacle for 85mm (90 Key). From Amphenol, this SurLok Plus series receptacle is a compact and quick mating compression lug that features a panel mount flange. Robust and environmentally sealed, the receptacle is field installable and highly reliable. With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area. The receptacle has a 10.3mm pin and is designed to terminate to 70mm² wires. Features and Benefits. • Touch Proof • Keyed to prevent mismating (90 degree) • Spring Locking • IP67 • Flammability rating of UL 94-V0. Applications. SurLok Plus series connectors are often used in Electric Vehicle applications (EV/HEV) and rail mass transit. The series also has applications in process control, medical and BMS/Energy storage.
