Amphenol Industrial, Surlok Plus RADSOK EV Connector Plug, 200A - SLPPB50BSB / C10-730188-100

Range = R4 RADSOK
Series = Surlok Plus
Connector Type = RADSOK
Number of Rows = 1
Number of Contacts = 1
Wire Size = 50 mm²
Current Rating = 200A
Operating Voltage = 1000V
Connector Gender = Male
Orientation = Right Angle
Termination Method = Crimp
Better World Product = Yes
Width = 21.6mm

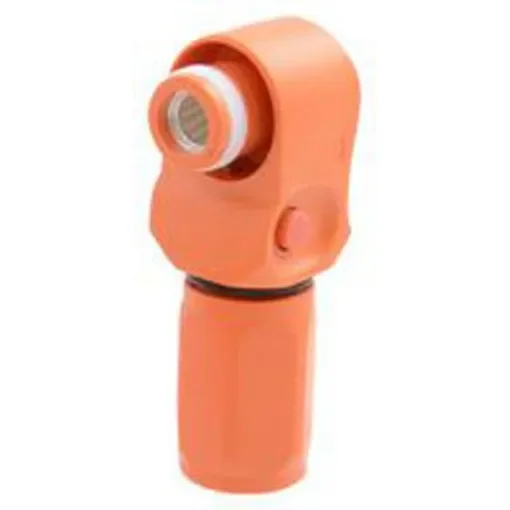

8mm SurLok Plus Plug for 50mm. From Amphenol, this SurLok Plus series plug is a compact and quick mating compression lug that features a quick lock and press-to-release connection. Robust and environmentally sealed, the plug is field installable and highly reliable. With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area. The plug has an 8mm pin and terminates to 50mm² wires. Features and Benefits. • Plug rotates 360° • Touch Proof • Spring Locking • Keyed to prevent mismating • IP67 • Flammability rating of UL 94-V0. Applications. SurLok Plus series connectors are often used in Electric Vehicle applications (EV/HEV) and rail mass transit. The series also has applications in process control, medical and BMS/Energy storage.
