Amphenol Industrial, Surlok Plus RADSOK EV Connector Plug, 200A - SLPIPB50BSB1 / C10-731951-111

Range = R4 RADSOK
Series = Surlok Plus
Connector Type = RADSOK
Number of Rows = 1
Number of Contacts = 1
Wire Size = 50 mm²
Current Rating = 200A
Operating Voltage = 1000V
Connector Gender = Male
Orientation = Straight
Termination Method = Crimp
Better World Product = Yes
Standards Met = UL 94-V0mm

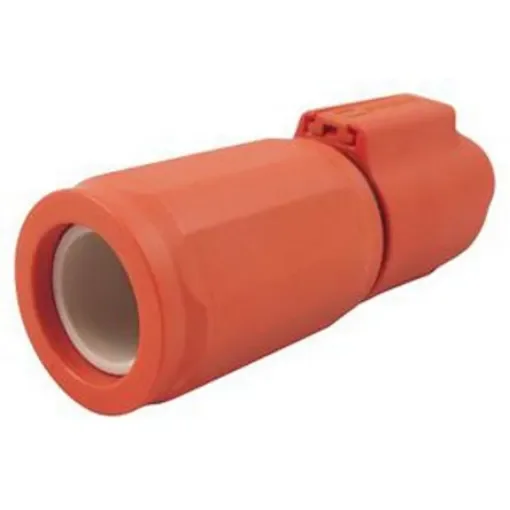

8mm SurLok Plus Plug for 50mm (180 Key). From Amphenol, this SurLok Plus series plug is a compact and quick mating compression lug that features a quick lock and press-to-release connection. Robust and environmentally sealed, the plug is field installable and highly reliable. With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area. The plug has an 8mm pin and terminates to 50mm² wires. • Plug rotates 360° • Touch Proof • Spring Locking • Keyed to prevent mismating (180 Degree) • IP67 • Flammability rating of UL 94-V0. Applications. SurLok Plus series connectors are often used in Electric Vehicle applications (EV/HEV) and rail mass transit. The series also has applications in process control, medial and BMS/Energy storage.
