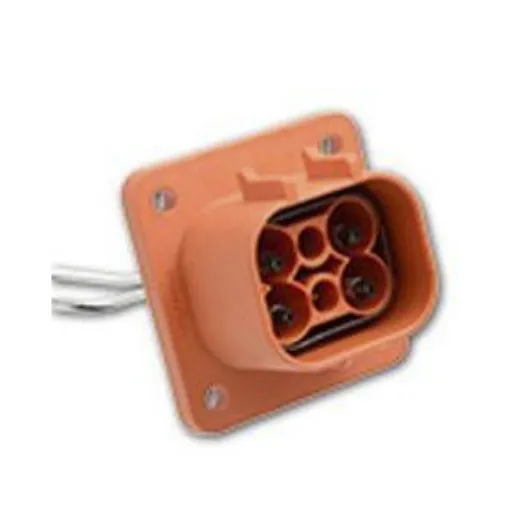

Amphenol Industrial, Epower Lite RADSOK Receptacle with HVIL EV Connector Socket, 13 to 70A - ELR4A04 / C10-737487-4AP4
Compact and lightweight EV connector with high amperage and low voltage drop for reliable performance.
Manufacturer part number: ELR4A04 / C10-737487-4AP4
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Contacts = 4
Wire Size = 10 mm²
Current Rating = 13 to 70A
Operating Voltage = 800V
Connector Gender = Female
Orientation = Straight
Termination Method = Crimp
Better World Product = Yes
Height = 48mm
ePower-Lite Connector, A Coding. From Amphenol, the ePower-Lite is a compact and lightweight hybrid electric vehicle connector. With a robust temperature resistant shell, dielectric protection for the connector is assured. The connector is field installable and repairable, and features a CPA to prevent mis-mating. Using RADSOK technology, the low-resistance connector features higher amperage, lower T-rise and voltage drop. With a compact design and small footprint, the ePower-Lite is ideal for EV and Hybrid applications. Features and Benefits. Compact and Lightweight Connector A-Coding Durability of over 100 mating cycles Waterproof: IP67 Touch Proof: IEC 60529 Flammability: UL 94V-0
