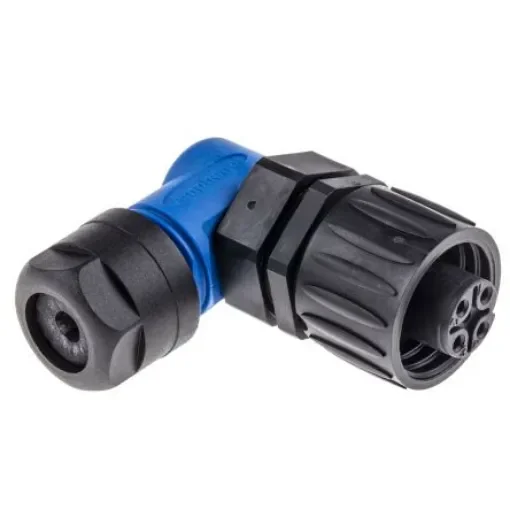

Amphenol Industrial Circular Connector, 3 + PE Contacts, Cable Mount, Socket, Female, IP67, Ecomate M Series - C01620F00310010

Number of Contacts = 3 + PE
Mounting Type = Cable Mount
Connector Size = Standard
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Screw
IP Rating = IP67
Current Rating = 16.0A
Body Orientation = Right Angle
Voltage Rating = 400.0 V
Housing Material = Polymer
Pole Format = 3 + PE
Contact Plating = Silver
Maximum Operating Temperature = +100°C

IEC60664-1, IEC60512-5-2, Test 5b, IEC60512-3-1, IEC60512-2-1. Eco-Mate Cable Connectors, 90°. From Amphenol, these right angle Eco Mate series circular connectors have a compact and robust design, with a screw lock connection that meets the high requirements of industrial technology applications. The 90° Eco Mate circular connectors are easy to assemble and are supplied with fittings which include strain relief, mounted gaskets, cable glands and clamping rings. The screwed cable gland has a robust thread for a secure connection. The housings of these Eco Mate circular connectors are made from premium moulding material and are ergonomically designed for safe handling. These Eco Mate series connectors offer a protection class IP 65/67 in their mated condition in accordance with DIN EN 60526 making them ideal for industrial environments. Features ; Benefits. • Screw lock connection • Quick and Easy Assembly • Keyed Orientation • Robust, ergonomic design • Pre-loaded ground contact • IP 65/67 rated. Applications. These Eco Mate series circular connectors are designed for use in the plant construction and machine building industries. Applications include measuring and controlling applications and power supply technology. FAQ. Q: Are there accessories available for these connectors? A: Connector caps are available to retain IP rating when unmated. Q: What are the advantages of Eco-Mate over similar connectors? A: As well as being easy to handle and quick mating, these connectors are impact, vibration and UV resistant. They present a robust connector solution for almost any environment. Q: Does this connector require special tooling? A: A ratchet crimp tool is available for affixing crimp contacts. (See ; 241-2786 241-2786 )
