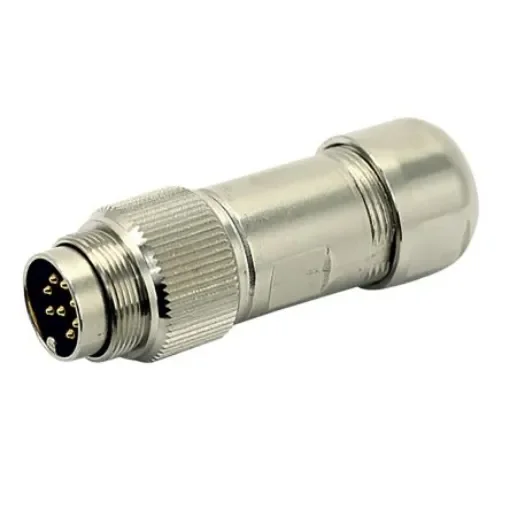

Amphenol Industrial, C 091 D+ 12 Pole M16 Din Plug, DIN EN 61076-2-106, 3A, 32 V IP68, Screw Coupling, Male, Cable Mount - C091 31H012 202 4 U

Number of Contacts = 12
Gender = Male
Mounting Type = Cable Mount
Connector Size = M16
Mating Type = Screw Coupling
Termination Method = Solder
Body Orientation = Straight
Current Rating = 3A
Voltage Rating = 32 V
IP Rating = IP68
Shielded/Unshielded = Shielded
DIN Number = DIN EN 61076-2-106
Series = C 091 D+
Housing Material = Die Cast Zinc
Minimum Operating Temperature = -40°C

IEC 60130-9, IEC 60664-1, IEC 60668-1, DIN IEC 60068-2-11, IEC 60529, IEC 60512-13-2, IEC 60512-9-1. Do not disconnect or connect under load. C 091 D+ Series Male Cable Connector. The C 091 D+ range of cicular connectors from Amphenol, offering outstanding durability and performance with screw locking to IEC 61076-2-106, IP68 rating, 360 degree EMI shielding and internal strain relief. These circular connectors are an upgrade to the C 091 D series with greater endurance and abilities, male cable mount version featuring a metal locking ring with a threaded coupling to IEC 60130-9, ideal for many applications including medical, robotic, energy generation systems, computer interfaces and many others. C 091 D+ connectors are fully intermateable with C 091 D connectors. Screw locking to IEC 61076-2-106 Metal locking ring IP68 rated Internal strain relief Reduced assembly time compared to C 091 D
