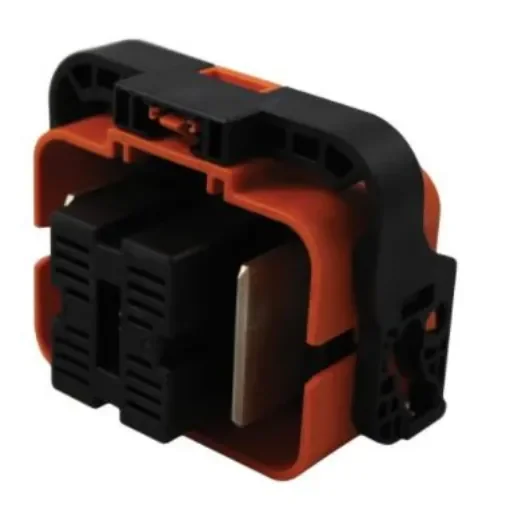

Amphenol Industrial 2 Stage Lever EV Service Disconnect For Use With HV Battery Pack - MINIMSDM125

Current Rating = 125A
For Use With = HV Battery Pack
IP Rating = IP67, IP69K
Maximum Operating Temperature = +70°C
Minimum Operating Temperature = -40°C
Series = MSD
Standards Met = LV215, USCAR2, USCAR37
Latching Type = 2 Stage Lever
Mounting Type = Flange Mount
Height = 73.5mm
Width = 91mm
Better World Product = Yesmm
Termination Method = Plug InV

Mini MSD Plug with HVIL. From Amphenol, this mini Manual Service Disconnect (Mini MSD) is for use in charging Plug In Hybrid Electric Vehicles (PHEV) and features a High Voltage Interlock Loop (HVIL). The plug features a two-stage lever to open the HVIL circuit prior to separation of HV contacts. The MSD presents a disconnect for internal high voltage battery packs without the need for specialist tools, while protecting the battery from short circuit. With a high degree of ingress protection, this Mini MSD offers a safe and reliable solution for PHEV servicing. The mini MSD presents a more compact and cost effective alternative to the standard MSD. Features and Benefits:. 1 x integrated internal HVIL Unique cooling structure Dual-channel design lowers temperature rise Receptacle can be front or rear mounted Durability of over 50 mating cycles Mates to IP67, IP6K9K Operating Temperature of -40°C to 70°C Standards: USCAR-2. USCAER-37, LV-215
