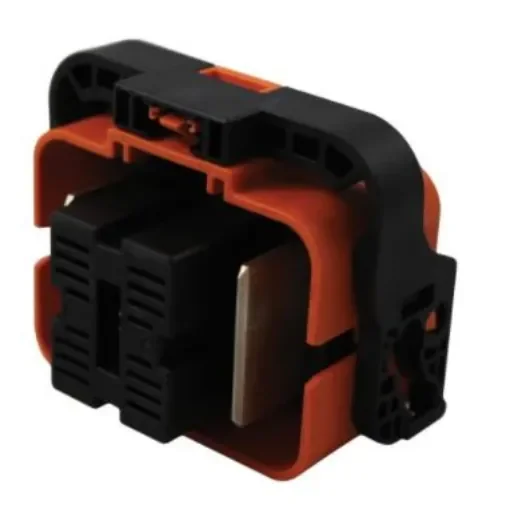

Amphenol Industrial 2 Stage Lever EV Service Disconnect For Use With HV Battery Pack - MINIMSDM000

Current Rating = 170A
For Use With = HV Battery Pack
IP Rating = IP67, IP69K
Maximum Operating Temperature = +70°C
Minimum Operating Temperature = -40°C
Series = MSD
Standards Met = LV215, USCAR2, USCAR37
Latching Type = 2 Stage Lever
Mounting Type = Flange Mount
Height = 73.5mm
Width = 91mm
Better World Product = Yesmm
Termination Method = Plug InV

Mini MSD Plug with HVIL (without Fuse). From Amphenol, this mini Manual Service Disconnect (Mini MSD) is for use in charging Plug In Hybrid Electric Vehicles (PHEV) and features a High Voltage Interlock Loop (HVIL). The plug features a two-stage lever to open the HVIL circuit prior to separation of HV contacts. The MSD presents a disconnect for internal high voltage battery packs without the need for specialist tools, while protecting the battery from short circuit. With a high degree of ingress protection, this Mini MSD offers a safe and reliable solution for PHEV servicing. The mini MSD presents a more compact and cost effective alternative to the standard MSD. This Mini MSD comes without a fuse. Features and Benefits:. Durability of over 50 mating cycles Mates to IP67, IP6K9K Operating Temperature of -40°C to 70°C Standards: USCAR-2. USCAER-37, LV-215
