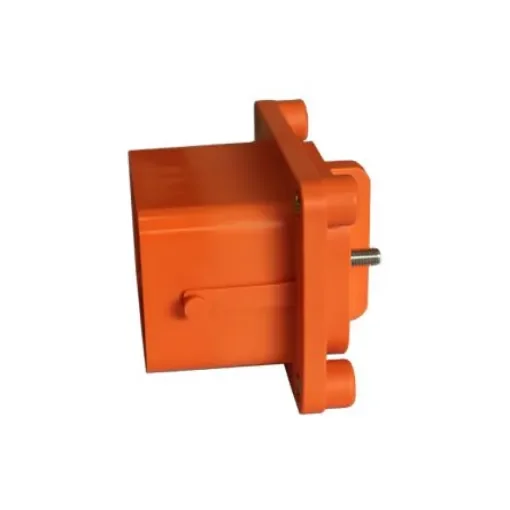

Amphenol Industrial 2 Stage Lever EV Service Disconnect For Use With HV Battery Pack - MINIMSDF000R

Current Rating = 170A
For Use With = HV Battery Pack
IP Rating = IP67, IP69K
Maximum Operating Temperature = +70°C
Minimum Operating Temperature = -40°C
Series = MSD
Standards Met = LV215, USCAR2, USCAR37
Latching Type = 2 Stage Lever
Mounting Type = Flange Mount
Height = 75mm
Width = 102mm
Depth = 76.65mm
Termination Method = Plug InV

Mini MSD Receptacle with HVIL. From Amphenol, this mini Manual Service Disconnect (Mini MSD) is for use in charging Plug In Hybrid Electric Vehicles (PHEV) and features a High Voltage Interlock Loop (HVIL). The MSD presents a disconnect for internal high voltage battery packs without the need for specialist tools, while protecting the battery from short circuit. With a high degree of ingress protection, this Mini MSD receptacle offers a safe and reliable solution for PHEV servicing. The mini MSD presents a more compact and cost effective alternative to the standard MSD. Options available: MINIMSDF000R rear mount – ; 123-5211 123-5211 MINIMSDF000F front mount – ; 123-5212 123-5212. Features and Benefits:. Durability of over 50 mating cycles Mates to IP67, IP6K9K Operating Temperature: -40°C to +70°C Standards: USCAR-2. USCAER-37, LV-215 Voltage rating: 1500V. IP67 Rating: An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets. Typical Application. This mini manual service disconnects is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit. These tools are essential for service technicians as they provide protection when dealing with high voltage electric vehicles.
