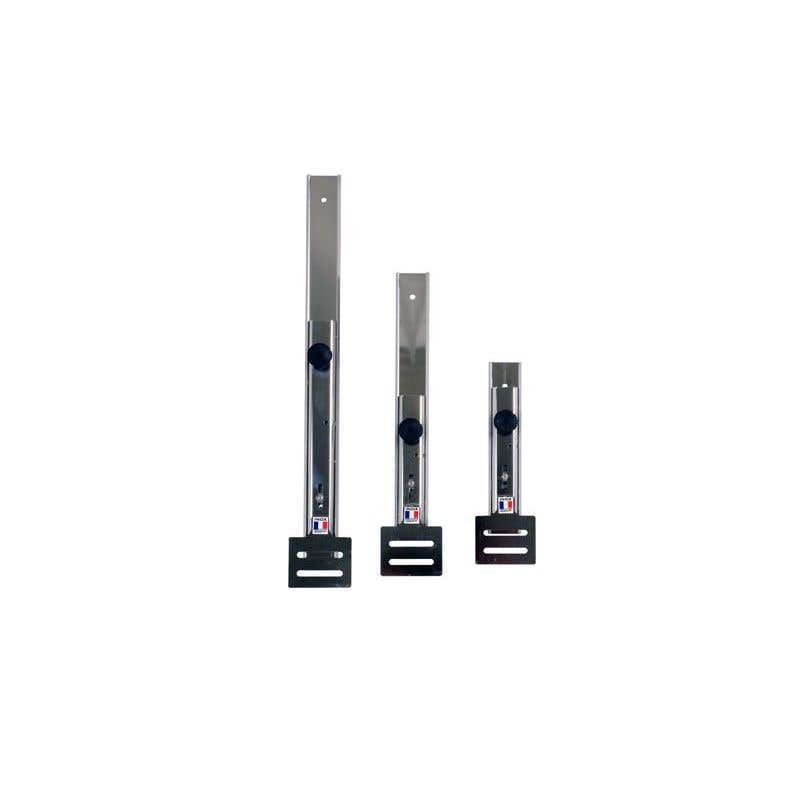

The Sliding Probe Support by AMIAUD is a stainless steel rail designed to elevate your boat's probe when exiting the water, preventing potential damage. It features a telescopic slide mechanism, allowing for adjustable lengths to accommodate various probe sizes.
- Adjustable Lengths: Available in three sizes to fit different probe dimensions:
- 30 cm sliding probe support: from 215 mm to 335 mm
- 50 cm sliding probe support: from 330 mm to 565 mm
- 80 cm sliding probe support: from 320 mm to 645 mm
- Stainless Steel Construction: Ensures durability and resistance to corrosion in marine environments.
- Telescopic Slide Mechanism: Allows for easy adjustment of the probe's position.
- Fixed Installation: Secured by screws for a stable and permanent setup.
Technical Specifications:
- Material: Stainless steel
- Probe Holder Dimensions: 84 mm x 54 mm
- Oblong Hole Dimensions: 21.5 mm x 6.5 mm
- Adjustable Lengths:
- 30 cm model: 215 mm to 335 mm
- 50 cm model: 330 mm to 565 mm
- 80 cm model: 320 mm to 645 mm
Materials:
- Main Body: Stainless steel
- Probe Holder: Stainless steel
Dimensions:
- 30 cm Model:
- Length: 215 mm to 335 mm
- Width: 84 mm
- Height: 54 mm
- 50 cm Model:
- Length: 330 mm to 565 mm
- Width: 84 mm
- Height: 54 mm
- 80 cm Model:
- Length: 320 mm to 645 mm
- Width: 84 mm
- Height: 54 mm
Compatibility Information: Designed to accommodate probes with an oblong hole measuring 21.5 mm x 6.5 mm. Ensure your probe's dimensions align with these measurements for proper fit and function.
