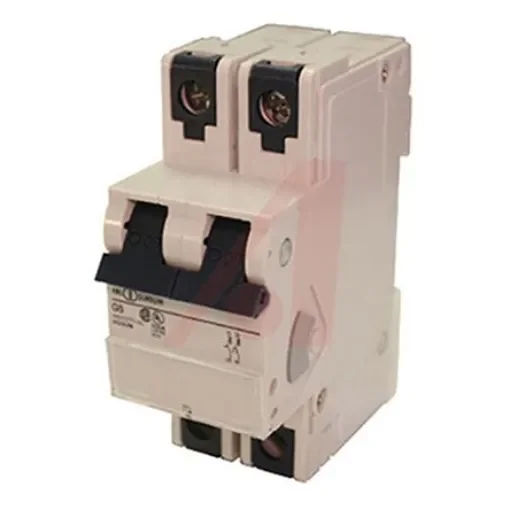

Altech Thermal Circuit Breaker - V-EA 2 Pole 277V Voltage Rating DIN Rail Mount, 16A Current Rating - 2E16UM
Compact and reliable thermal circuit breaker for effective overcurrent protection.
Manufacturer part number: 2E16UM
Availability: Out of stock
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Current Rating = 16A
Number of Poles = 2
Voltage Rating = 277V
Width = 35mm
Series = V-EA
Tripping Mechanism = Thermal-Magnetic
Reset Actuator Type = Handle
Tripping Characteristics = Type E
Rated AC Voltage = 480Y/277V
Mounting Style = DIN Rail Mount
Rated DC Voltage = 80V
Altech V-EA Series DIN Rail. Thermal Magnetic Circuit Breakers are found in most distribution boards. The thermal portion provides an "inverse time" response feature, which trips the circuit breaker sooner for larger overcurrent ‘s. The Altech V-EA series are primarily DIN Rail mounted and provide a compact solution to your protection requirements. All models are highly reliable and excellent quality. DIN Rail Mounted 17.5mm width per pole Thermal Magnetic 10kA Short Circuit Withstand Capacity
