Allen Bradley Plug In Non-Latching Relay, 60V dc Coil, 10A Switching Current, DPDT - 700-HA32Z60-3
High-performance non-latching relay with 60V DC coil and 10A switching capacity.
Manufacturer part number: 700-HA32Z60-3
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 60V dc
Contact Configuration = DPDT
Mounting Type = Plug In
Switching Current = 10A
Number of Poles = 2
Coil Resistance = 2760 O
Coil Power = 1.3W
Series = 700-HA32kV

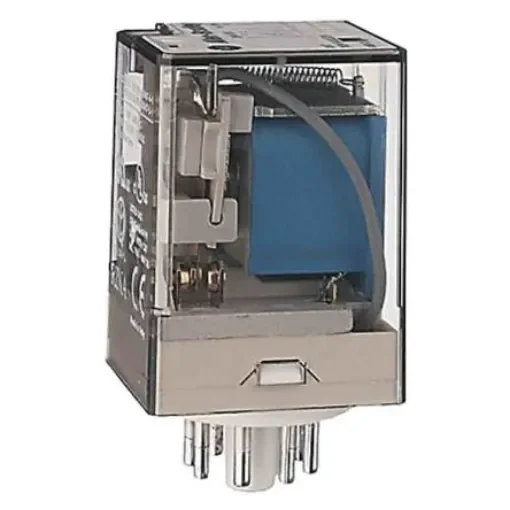

The Rockwell Automation series 700-HA general purpose tube base relay. It has a 8 pin and 10A current .Contact configuration is DPDT, and coil voltage is 60Vdc.Pin-style terminals Standard ON or OFF flag indicator Electrical schematic on face Clear cover for visual inspection Optional push-to-test and manual override Optional LED
